Toshiba inverter multioption board, part# VF3X-0887B
Toshiba Inverter Multi-Option Board Interface,

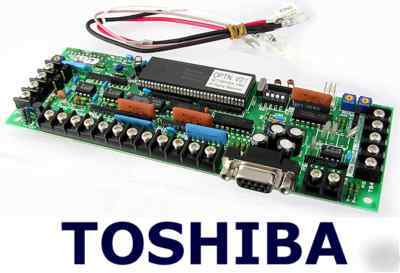

This a Toshiba Tosvert Inverter Interface Board (PCB) kit, it has a PCB part code of VF3X-0887B, and an PCB order code of P6580887G2.
It is NEW and unused stock from a Variable Speed Motor/Drive Installation & Maintenance company that recently closed down and is guaranteed against DOA. It was stocked as a spare part for Toshiba Tosvert Inverters. It arrives in its original packaging with a Toshiba parts label on the side (see photo), and has a boxed weight of 440gr approx.
2. Multioption Board Instruction Manual
3. Computer Interface Instruction Manual
The Multioption board kit has the following ten functions in a single printed circuit board,
1. Remote computer interface (RS-232)
5. Forward/reverse run frequency setting with +/- 10V signals
6. Pulse input (frequency setting signals)
7. ON/OF control signal output (open collector) to magnetic contactor for switching to commercial power supply
8. Overload pre-alarm output (open collector)
9. Analog output to ammeter & frequency meter (1 mAdc full scale)
10. 96 times frequency output
