Sw ind trak 16X30 cnc turn center, 2008, trl-1630SX
We are pleased to quote for you the following. Please note that these are approximate specifications only. We advise that you personally inspect this machine before purchasing it to verify the following information:

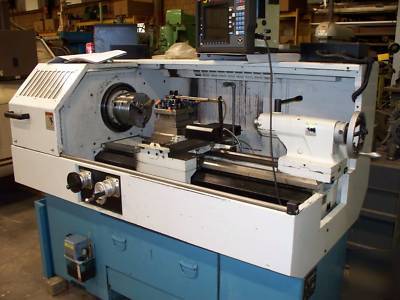

1-Used Southwestern Industries TRAK 16 x 30 CNC Turning Center
Swing over Bed............................................................. 16
Distance between Centers.............................................. 30
Swing over Cross Slide.................................................. 8.6
Cross Slide Travel.......................................................... 8.5
Spindle thru Hole........................................................... 2.12
Spindle Speeds.............................................................. 150-2,500 RPM
Spindle Nose................................................................. D1-6 Camlock
Indexer (tool post)......................................................... 4 Position
Max Rapid Feed, X........................................................ 100 IPM
Max Rapid Feed, Z........................................................ 150 IPM
Main Motor.................................................................... 7.5 HP
Tailstock Quill Travel.................................................... 6.3
Tailstock Quill Diameter................................................ 2.36
Tailstock Quill Taper..................................................... MT-4
Approx Dimensions....................................................... 87 x 45 x 67
Approx Weight.............................................................. 2,750 Lbs
ProtoTrak SLX CNC Control, Windows Based with Color Graphics & Teach Mode, RS232 Communications Port, Full Conversational with 3.5 Floppy Drive, Bison 8 3 Jaw Chuck, Remote Stop/Go Switch, Optional 4 Position Star Auto Powered Indexing Tool Post, Electronic Handwheels with Jog Stick, Automatic Electro-Magnetic Spindle Brake, Flood Coolant, Chip Pan
Price............................................................................. $22,500.00
