Very nice 16" x 40" tongil (korea) inch/mm engine lathe

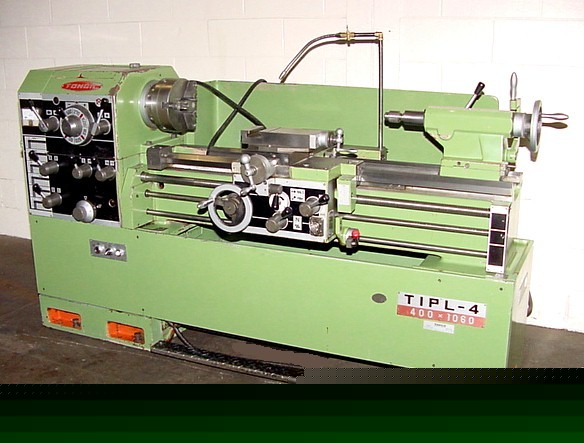

VERY NICE 16" x 40" TONGIL (KOREA) INCH/MM ENGINE LATHE
MODEL: TIPL-4, S/N:005-4094, NEW: 1980's
SWING OVER BED .......................... 15.75"
SWING OVER CROSS SLIDE .................. 8.25"
DISTANCE BETWEEN CENTERS ................ 41.75"
SPINDLE BORE ............................ 2.2"
SPINDLE NOSE, CAMLOCK, SIZE ............. D1-6"
SPINDLE SPEED RANGE (8). ................ 60 TO 1500 RPM
LONGITUDINAL FEED RANGE ................. .0013 TO 0.029 IPR
CROSS FEED RANGE ........................ .0006 TO 0.013 IPR
ENGLISH THREADING RANGE ................. 4 - 56 TPI
METRIC THREADING RANGE .................. .5 - 7 MM
TAILSTOCK SPINDLE TAPER ................. # 4 MORSE
TAILSTOCK SPINDLE TRAVEL ................ 6"
APPROXIMATE FLOOR SPACE ................. 36"W x 90"L
APPROXIMATE WEIGHT ...................... 3,500 LBS
SELF-CONTAINED COOLANT SYSTEM AND PAN BASE
5 HORSE POWER SPINDLE DRIVE MOTOR
INSPECT UNDER POWER IN NEW JERSEY WAREHOUSE
