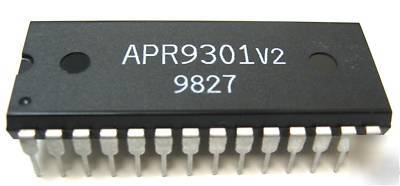

record & playback APR9301 message ic 28DIP 90PC chips
Voice Record & Playback Chip by Aplus Intergrated Circuits, 90 pc. Lot. The APR9301v2 device offers single-chip solid-state storage capability and requires no software or microcontroller support. It provides high-quality recording and playback with a single 20 to 30-second message. It is ideal for portable voice recorders, toys, and many other consumer and industrial applications. New.
Data Sheet and User Manual can be downloaded from Aplus Integrated Circuits, Inc. http:// .tw/data/apr9301v2-v2.3.pdf
- Non-volatile Flash memory technology
- 100K record cycles (typical)
- 100-year message retention (typical)
- Single message of 20 to 30 seconds, with external resistor selection
- Chip enable pin for simple message expansion
- User-friendly, easy-to-use operation
- Programming & development systems not required
- Level-activated recording & edge-activated playback switches
- Operating current: 25mA (typical, no load)
- Standby current: 1uA (typical, no load)
