> Series 24, electroswitch part number 24305
Series 24, electroswitch part number 24305
Features Double-Sided, Double-Wiping, Knife-Type Rotary Contacts Silver Contact Surfaces for Long, Reliable Life Terminal Screws Easy Installation Four Hole Mount Control Switch Special Features Spring Return to Normal (Vertical) Position Instrument Switch Special Features Make-Before-Break (Shorting Contacts) Common Input Tap Switch Arrangement - Sequentially Connected to Several Lines Using the Same Switching Deck Positive Positioning, Maintained Action Detent Mechanism Electrical Specifications Interrupt Ratings 10A/120VAC 5A/240VAC 3A/600VAC Overload Current (50 operations): 22A/125VAC Resistive Voltage Breakdown: 1200V rms minimum Insulation Resistance: 100 Megohms minimum Contacts Resistance: 10 milliohms maximum Mechanical Specifications Sections 1 to 25 Poles 1 to 75 Positions 12; Adjustable Stops for 2 12 Position Rotation Contacts Break-Before-Make (Non-Shorting); Make-Before-Break (Shorting) Action 30 Positive Detent Indexing Mounting 4-Hole Panel Thickness 3/16" Max. Standard Rotor Contacts Silver Plated Phosphor-bronze, Double Grip Stationary Contacts Silver Plated Copper, w/Integral Screw Type Terminals Construction Contacts Enclosed in Molded-phenolic Disks Approvals UL File No. E18174 CSA File #LR20743

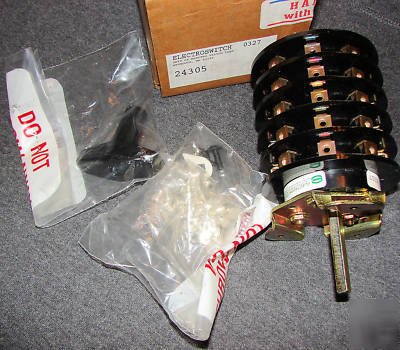

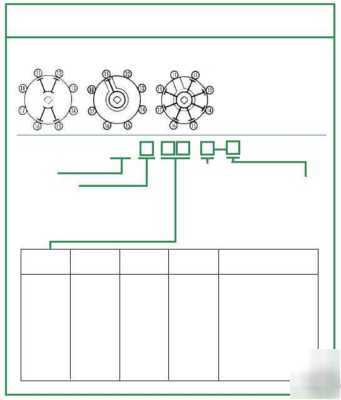

Part Number 24305, Series 24, Assemblage #3 (see Attached), 5 sections
