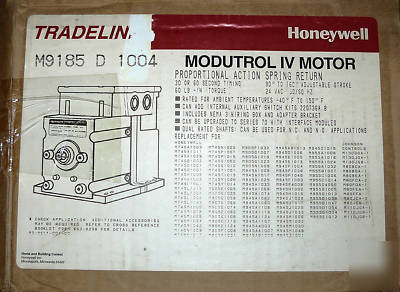

New honeywell M9185-d-1004 modutrol iv motor M9185D1004
24V Spring Return Foot Mounted Actuator, 60 lb-in
Series 90 Modutrol Motors are spring return modulating proportional control motors used with controllers that provide a Series 90 output to operate dampers or valves.
* Integral junction box provides NEMA 3 weather protection if motor is mounted in the upright position.
* Motor and circuitry operate from 24 Vac.
* Quick-connect terminals are standard-screw terminal adapter is available.
* Adapter bracket for matching shaft height of older motors is available.
* Motors have field adjustable stroke (90 to 160 degrees).
* Integral auxiliary switches are available factory mounted, or can be field added.
* All models have dual shafts (slotted and tapped on both ends).
* All models have auxiliary switch cams.
* Fixed torque throughout the entire voltage range.
* Application Type: Electric
* Fail Safe Mode: Spring Return
* Control Signal: Proportional, 135 ohm
* Motor Shaft: Dual ended Shaft
* Stroke: Adjustable; 90 to 160 degrees, Symmetrical
* Torque Rating (lb-in.): 150 lb-in
* External Auxiliary Switches Available: Yes
* Power Consumption Driving (VA): 20 VA
* Electrical Connections: Quick Connect Terminals
* Shaft Dimensions (in.): .375 in
* Dimensions: 6 7/16 in. high x 5 1/2 in. wide x 8 3/4 in. deep
* Temperature Range: -40 to 150F
* Deadweight Load on Shaft (Either End) (lb): 200 lbs
* Deadweight Load on Shaft (Combined on both shafts) (lb): 300 lbs
* Nominal Timing (sec): 30-60 sec
* Shaft Rotation (upon control signal increase): Clockwise (as viewed from power end) (normally closed)
* Auxiliary Switch Ratings AFL - 120 Vac: 7.2A
* Auxiliary Switch Ratings AFL - 240 Vac: 3.6A
* Auxiliary Switch Ratings ALR- 120 Vac: 43.2A
* Auxiliary Switch Ratings ALR- 240 Vac: 21.6A
