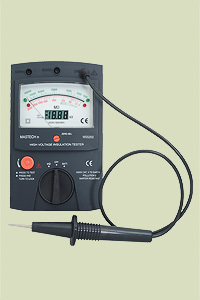

New MS5202 digital/analogue insulation tester
MS5202 DIGITAL/ANALOGUE INSULATION TESTER
Design according to the IEC1010-1 standard CAT II 5000V
Inner battery test function is provided
Double test switch is to avoid inncorrect operation
Unique design is to protect inner circuit from wet and cankerous air
The instruments test insulation up to 100000M at 2500V
Insultation resistance accuracy (analog display): 100 ~ 50000M 2.5% of ARC, 0 ~ 100M /50000 ~ 100000M 3.0% of ARC
Output voltage (digital display): 2500V 5.0% (100 ~ 50000M )
Power: 1.5V (UM3, AA) x 8, 9V (6F22) x 1
Weight: Approx. 1000g (including battery)
Test line: Electric Ratings 2500V 1A One piece
Test Clips: Electric Ratings 2500V 1A One piece
Battery: 1.5V SIZE AA Eight pieces
Battery: 9V 6F22 1604 One piece
http:// /New_products_info/Datasheet/huayi/MS5202MANUAL.doc
