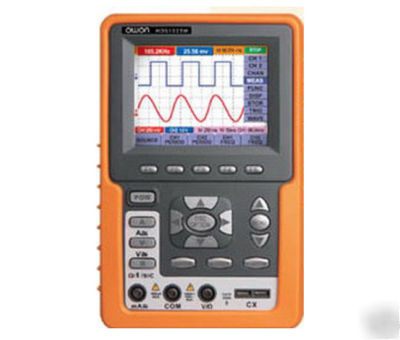

Hds-1022M digital storage oscilloscope
* 3-3/4 digit DMM with datalogger
* Li-ion battery and AC adapter
* Extra bright backlight display
* Sample rate up to 100MSa/s, 20MHz bandwidth
* RS-232, USB port for programming & data transferring
* Edge triggering, video triggering, 5 automatic measurement
* Independently floating isolated scope and DMM channels for safety
* A profession ideal tool for design, maintenance and examination
Most greatly real-time sampling rate
Channel and digital transformation
Independent floats isolates the channel
The avonmeter and the oscilloscope input is isolates
+/-(0.01% reading +1 picture elements)
+/- (5% reading +0.05* measuring range/Standard)
Automatic, is normal, Shan Ci, the border, the video frequency
Cursor and image multiplication
Real effective value numeral multipurpose table
The voltage, the electric current, the resistance, pass breaks, the diode
VDC: (1,%+1 characters) VAC:(1, %+3 characters)
400 ohms: (1,%+3 characters)4K, 40K, 400K, 4M: (1,%+1 characters) 40M: (1.5%+3 characters)
51.2nF-100uF: (3,%+3 characters)
Program control characteristic/Connection characteristic
The power source suitably matches/Battery
3.8 inches colored liquid crystal displays
320 levels 240 vertical picture elements
Two 1.2m, 1:1 (10:1) oscilloscope passive rapier, As soon as pays the avonmeter to measure the test pencil, One RS-232 data delivers line, One electric current survey expansion block, One Small electric capacity survey module, One oscilloscope rapier adjustment tool, One conforms to the country standard power source adapter, One uses the compact disc.
