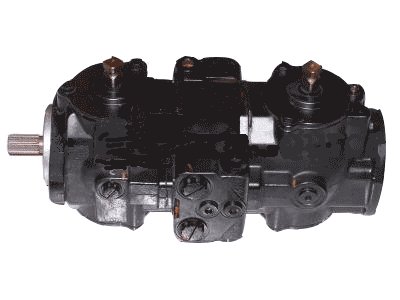

1995 john deere 260 hydraulic drive pump
Tag on pump reads; EATON * 78364-RCA-02 * 001106RH4T024 * KV2059 * REV B
Specs on John Deere Skidsteer are as follows;
Patented vertical-lift system with cushioned
boom cylinders provides greater reach
than conventional skid steers, for precise
center load placement and quick, efficient
72-hp John Deere 3029T high-torque, turbocharged
engine with direct injection has
exclusive wet-sleeve design, high-ring
pistons, and precision joint-connecting
rods. This easy-starting, durable engine is
Optional two-speed (up to 12 mph) transmission
is available for increased productivity.
Quick-lift cab, removable side panels, and
easy-access top and rear doors permit
convenient maintenance and service.
Superior 360-degree visibility results in
greater productivity and safe operation.
Unique boom arm design provides maximum
Steep 45-degree dump angle and high
35-degree bucket rollback make for more
efficient load carrying and quicker cycle
Available cab enclosure, air conditioner,
and heater/defroster provide year-round
Optional hydraulic Quik-TatchTM latches/
unlatches at the touch of a switch for convenient
in-the-seat attachment switchover.
Strong machine forces include 7,500-lb.
bucket breakout, 4,800-lb. boom breakout,
5,750-ft.-lb. axle torque, and 5,000-lb. tipping
load. Rated Operating Capacity (R.O.C.) is
2,400 lb. (2,600 lb. with optional counterweight).
127-in. hinge pin height easily clears 10-ft.
truck sideboards for fast, efficient truck
360-DEGREE VISIBILITY IS YOUR WINDOW OF OPPORTUNITY.
260 Series II Standard Equipment Options/Accessories
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . John Deere Adjustable Armrests, Patent Pending Air Conditioning with Heater/Defroster
Model . . . . . . . . . . . . . . . . . . . . . . . . . . 3029T Adjustable Foot Pedals Auto Preheat
Displacement . . . . . . . . . . . . . . . . . . . . 179 cu. in. (2.9 L) Air Heat Cold Start Auto Shutdown with Alarm
Cylinders . . . . . . . . . . . . . . . . . . . . . . . . 3 Auxiliary Hydraulics Backup Alarm
Horsepower . . . . . . . . . . . . . . . . . . . . . 72.4 hp (54 kW) gross / 69 hp (51.5 kW) net Convenient Front and Rear Tie Downs Block Heater Kit
Rated Engine Speed . . . . . . . . . . . . . . 2,400 rpm Deluxe Seat Cab Enclosure
Fuel Capacity . . . . . . . . . . . . . . . . . . . . 20 U.S. gal. (76 L) Four Grab Handles Demolition Door Kit
Performance: Front and Rear Work Lights Dual Flashers Kit
SAE Rated Operating Capacity . . . . . . 2,400 lb. (1089 kg) Integral Cab Boom Locks Floor Cover Plates
With Optional Counterweights . . . . 2,600 lb. (1180 kg) John Deere Manufactured Hydraulic Hand Controls
Tipping Load . . . . . . . . . . . . . . . . . . . . . 5,000 lb. (2268 kg) Cylinders Heater/Defroster Kit
Breakout Force: Meters/Gauges/Warning Lights High-Flow Hydraulics
Heavy-Duty Foundry Bucket . . . . . 7,500 lb. (3402 kg) Patented John Deere Quik-Tatch Horn
Heavy-Duty Construction Bucket . . . 5,300 lb. (2404 kg) Patented Vertical-Lift Boom Hydraulic Quik-Tatch
Ground Speed: Quick-Pivot ROPS Hydraulic Self-Leveling Kit
Single Speed . . . . . . . . . . . . . . . . . . 7.0 mph (11.3 km/h) Rear Window Quik-Tatch Weights
Two-Speed, Low . . . . . . . . . . . . . . . 7.0 mph (11.3 km/h) Seat Belt with Auto Recoil Rear Weight Brackets
Two-Speed, High . . . . . . . . . . . . . . . 12.0 mph (19.3 km/h) Triple Interlock Control System Rearview Mirror Kit
Maximum Axle Torque . . . . . . . . . . . . . 5,750 ft.-lb. (7796 Nm) Turbocharged John Deere POWERTECH Shoulder Belt
Operating Weight . . . . . . . . . . . . . . . . . 8,250 lb. (3742 kg) Engine Side Window Kit
Hydraulics: Wet Disk Brakes SMV Sign
Hydraulic Pressure . . . . . . . . . . . . . . . 3,100 psi 12 pr. 14x17.5 SKS Extra-Wall Tires Suspension Seat
Hydraulic Pump: 55-Amp Alternator Top Window
Standard Flow . . . . . . . . . . . . . . . . . 21.3 gpm (80.6 L/min.) Vinyl Cab Enclosure
High Flow . . . . . . . . . . . . . . . . . . . . . 33.1 gpm (125.3 L/min.) Warning Beacon
Hydraulic Horsepower: 2-Speed Transmission
Standard Flow . . . . . . . . . . . . . . . . . 38.5 hp (28.7 kW) 3-Inch Seat Belt
High Flow . . . . . . . . . . . . . . . . . . . . . 59.9 hp (44.7 kW) 8-Button Handle
Transmission . . . . . . . . . . . . . . . . . . . . Hydrostatic four-wheel drive 12-Volt Receptacle Kit
Length without Bucket . . . . . . . . . . . . 115 in. (2921 mm)
Length with Bucket . . . . . . . . . . . . . . . 138 in. (3504 mm) John Deere Worksite Pro Attachments
Width without Bucket . . . . . . . . . . . . . 76.2 in. (1935 mm)
Height to ROPS . . . . . . . . . . . . . . . . . . . 82.9 in. (2105 mm) Ag Utility Grapple Hydraulic Breakers Snow/Utility Blades
Height to Hinge Pin . . . . . . . . . . . . . . . 127 in. (3226 mm) Angle Brooms Multi-Purpose Buckets Three-Point Hitch
Dump Reach : Augers Pallet Forks Tined/Brush Grapples
Heavy-Duty Foundry Bucket . . . . . 32 in. (813 mm) Backhoes Pick-Up Brooms Tooth Bars
Heavy-Duty Construction Bucket . . . 39 in. (991 mm) Bale Spear Power Rakes Tracks
Dump Angle (At Full Height) . . . . . . . . 45 degrees Cold Planers Rotary Tillers Trenchers
Bucket Rollback (At Ground) . . . . . . . 35 degrees Construction, Foundry, Scrap Grapples Vibratory Rollers
Wheelbase . . . . . . . . . . . . . . . . . . . . . . 47.6 in. (1209 mm) Manure/Slurry, and
Ground Clearance . . . . . . . . . . . . . . . . 11 in. (280 mm) Utility Buckets
Angle of Departure . . . . . . . . . . . . . . . 27 degrees Due to various widths, not all attachment sizes offered are compatible with all 200 Series Skid Steers.
Standard Tire Size . . . . . . . . . . . . . . . . 14x17.5 SKS Extra-Wall, 12-ply rating
John Deere Standard Warranty . . . . . 1-year unlimited hours
