Os walker automatic chuck control variable hold w/demag
**QUALITY AMERICAN MADE PRODUCT**

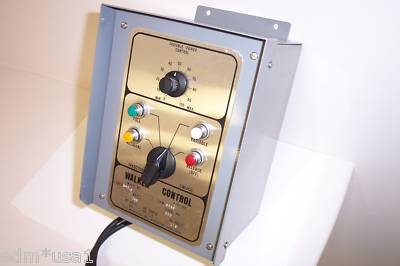

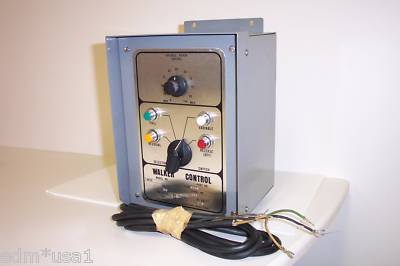

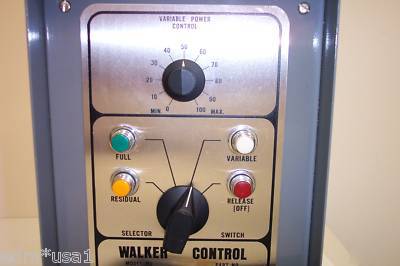

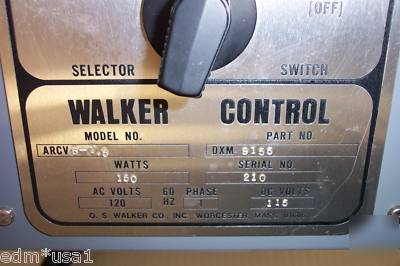

EDM*USA IS OFFERING ONE (1) NEW OLD STOCK O.S.WALKER PN: DXM-9155 MODEL ARCVB-1.5 SN: 210 AUTOMATIC ELECTROMAGNETIC CHUCK CONTROL FEATURING FULL HOLD, VARIABLE HOLD, RESIDUAL HOLD AND DEMAGNETIZING.
CONTROL IS WIRED FOR 115 VOLT 1-PHASE OPERATION.
THIS CONTROL CAN HANDLE ELECTROMAGNETIC CHUCKS REQUIRING UP TO 150 WATTS @ 115v DC, WHICH COVERS MOST BRAND CHUCKS UP TO APPROXIMATELY 12" x 24". JUST LOOK AT YOUR CHUCK'S ID PLATE AND THE VOLTAGE and WATTAGE REQUIREMENTS WILL BE SHOWN THERE. AS LONG AS YOUR CHUCK IS IN PROPER WORKING CONDITION AND IT REQUIRES 150 OR LESS WATTS AND OPERATES @ 115v DC, THIS CONTROL WILL PROVIDE 100% HOLDING POWER.
THIS SERIES CONTROL WAS O.S. WALKER'S TOP OF THE LINE PRIOR TO THEIR MOVE TO THE MEMBRANE SWITCH "SMART" SERIES CONTROLS. MANY TOOLMAKERS PREFER THE "MECHANICAL" FEEL OF THIS SERIES' SELECTOR, NOT TO MENTION THE ABILITY TO REPAIR IT YOURSELF. YOU CAN'T REPAIR A MEMBRANE SWITCH!
THIS CONTROL HAS CONNECTORS FOR ELECTRICAL LEADS BECAUSE IT WAS PREPARED TO BE HARD WIRED INTO AN OKAMOTO SURFACE GRINDER CONTROL. YOU CAN ALSO HARD WIRE TO YOUR GRINDER OR ADD YOUR CHUCK'S EXISTING TERMINALS TO THE TWO CHUCK LEAD WIRES AND USE A 120v 3-WIRE PLUG IN FROM LOWES or HOME DEPOT FOR THE POWER CONNECTION.
THIS CHUCK CONTROL IS OFFERED WITH NO WARRANTY BUT IT HAS BEEN CHECKED AND IS FULLY FUNCTIONAL. EDM*USA GUARANTEES THAT THIS CONTROL WILL NOT ARRIVE DOA.
IF THERE IS A PROBLEM THE PURCHASER MUST CONTACT EDM*USA IMMEDIATELY AND IF WE CAN NOT RESOLVE THE PROBLEM EDM*USA WILL ACCEPT THE RETURN OF THIS CONTROL WITH RETURN FREIGHT PAID BY PURCHASER AS NOTED BELOW.
