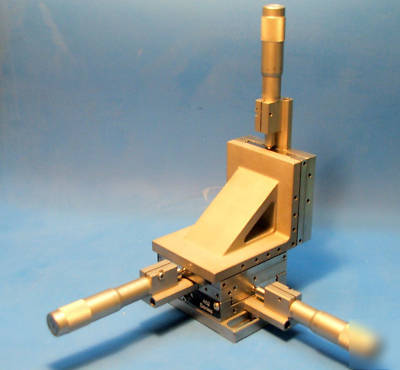

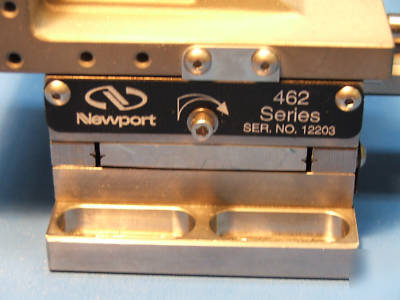

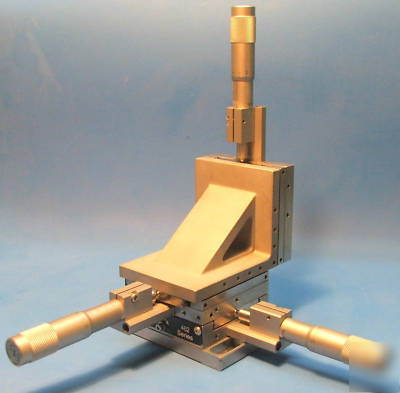

New port 462 xyz stage with 3 newport micrometers
* Maximum Stage Travel [in. (mm)] = 1.0 (25)
* Angular Deviation ( rad) = <100
* Max Centered Load [lb (N)] = 43 (191)
* Load Capacity, Vertical [lb (N)]
Here is a link to Newport's website:
http://search.newport.com/?q=*&x2=sku&q2=462-XYZ-M
Here is what Newport's website has to say about it:
Newport 462 Series ULTRAlign Precision Integrated Crossed-Roller Bearing Linear Stages feature stainless steel construction for high stability, with thermally matched, hardened steel crossed-roller bearings for unsurpassed performance. The crossed-roller bearings and precision-manufactured bearing reference surfaces provide exceptionally linear travel, with angular deviation better than 100 rad about any axis. Our analysis has shown that optimum stability demands that not only the stage be built of stainless steel, but also the angle brackets, actuator mounts, and even the assembly hardware. ULTRAlign stages overcome the limitations of multi-axis stages derived from traditional tooling industry designs. The actuators are located out-of-the-way of oversized loads. Z-axis stages do not depend on springs for support, ensuring maximum vertical load capacity. Generous hole patterns provide easy mounting, with your choice of English (1/4-20) or Metric (M6) threaded holes and spacing. The mounting base can be removed for a lower profile. Each axis features a non-influencing locking mechanism for negligible motion of the stage when locking or unlocking. Specially designed actuator mounting blocks allow quick and easy actuator changes, on any axis, at any time. Both right and left-handed stages are available for convenient actuator adjustment. When a smaller footprint is necessary, side-drive versions are available for the 462 Series Stages.
