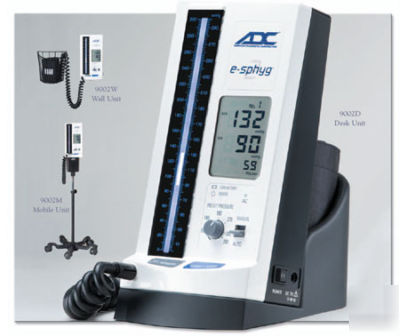

New adc e-sphyg 2 9002M digital sphyg mobile unit
The world s first digital mercury sphyg with auto measurement option, makes transitioning to a 21st century device from a traditional mercurial sphyg a snap. The unique backlit LCD display mimics the appearance of a traditional mercury column, but can be easily read in low light conditions. A second numeric LCD displays pressure, pulse, and a host of other vital information. The e-sphyg 2 features auto/manual settings. In manual mode, blood pressure is measured using the traditional, time-tested auscultatory method. Auto mode can be used with child, adult, and large adult size cuffs to automatically obtain systolic/diastolic pressure and pulse in about 1 minute.
* GRAPHIC back lit mercury free LCD that mimics the appearance of a mercury column for easier reading.
* Multi-function alpha-numeric LCD displays air pressure, deflation rate, systolic, diastolic pressure and pulse (auto mode only).
* Manual mode allows practitioners to use the time-tested auscultatory method with ANY sized cuff. Automatic inflation to pre-set levels simplifies use. ECV (electronic control valve) precisely controls deflation at one of three pre-established rates for optimum results.
* Auto mode obtains readings automatically in about 1 minute.
* Automatic inflation and deflation. Manual mode, the operator can select from deflation rates of 2.5, 4.5 or 6.5mmHg/sec.
* NICAD rechargeable battery provides about 200 measurements use on a single charge.
* Safe, no mercury, clinically proven accuracy.
* Operating Principle: Oscillometric method*
* Indicator: 300 digits column LCD and 10 digits segment LCD
* Pressure Indicating Range: 0 to 300 mmHg (cuff pressure)
* 50 to 250 mmHg (systolic)
* 40 to 180 mmHg (diastolic)
* 40 to 160 bpm (pulse rate)
* +/-3 mmHg (cuff pressure)
* +/- 5% of reading (pulse rate)
* Inflation : Automatic inflation
* Deflation: Electric control valve
* Exhaust: Automatic exhaust valve
* 7.0 VDC AC adapter (MODEL 9605+02225-1UOC) or
* 4.8 VDC rechargeable NiMH battery
* Power Consumption : 14W (max.)
* Memory: single measurement result*
* Operating Environment: +50 F to +104 F, 15 to 90% relative humidity
* Storage Environment: -4 F to +122 F, 15 to 95% relative humidity
* Weight: Approx. 2.2 lb. [1000 g], without AC adapter or battery
* Size: 5.4 x 10.6 x 3.8 in [136 x 266 x 96 mm] (W x D x H)
This device complies with EMC (IEC60601-1-2), EN1060-1 and EN1060-3.
* marks only apply to "AUTO" measurement.
