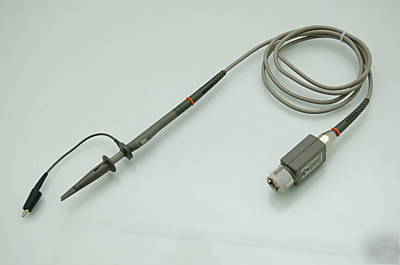

Tektronix P6137 10X dc passive oscilloscope probe 2467X
These units are tested and guaranteed. All units include a grounding clip, in either micro-grabber or alligator clip form.
10 M shunted by 10.8 pF at DC
Delay difference between any two probes of equal length is <200 ps
System Bandwidth (-3 dB, usang a properly terminated 50 source)
With 2467X or 2465B oscilloscopes
With 2467 or 2465A oscilloscopes
Maximum Nonn-Destructive Input Voltage
500 V (DC + peak AC) to 1.3 MHz
15 C to +65 C (+5 F to +149 F)
-62 C to +85 C (-80 F to +185 F)
Five cycles (120 hr) at 95% to 97% relative humidity. Per Tek Standard 062-2847-00, Class 3. Refer to MIL-E-16400F, paragraphs 4.5.9 through 4.5.9.5.1, Class 4.
