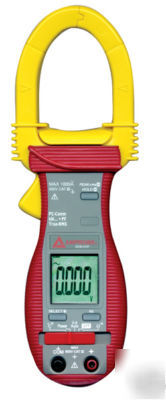

New amprobe acd-31P clamp on power meter trms
This instrument combine the standard features of professional clamp-on meters, with full Power analyzing capabilities! Measure: Active (W), Reactive (VAR) and Apparent (VA) Powers along with dual display Power Factor readout. Increase measuring efficiency with an optional PC interface kit.
* AutoVA - Auto Selection of AC Volts, DC Volts or AC Amps
* AC/DC Voltage up to 600V, AC Current up to 1000A, Resistance, Frequency
* Active (W), Reactive (VAR) and Apparent (VA) Power with dual-display Power Factor readout,Temperature
* Optional PC interface capability (RS-232 KIT2)
* Large, easy to read LCD display
* Accommodates conductors up to 1.77 (45mm) in diameter
* Carrying case, test leads, batteries (installed),thermocouple and manual included
* Voltage overload protection for all functions up to 600V AC/DC
AC Current: 40.0 / 400.0 / 1000 A
AC Current Basic Accuracy**: +/-(1.0% Rdg + 5 LSD) @ 50 and 60Hz
DC Voltage Basic Accuracy**: +/-(0.5% Rdg + 5 LSD)
AC Voltage Basic Accuracy**: +/-(0.5% Rdg + 5 LSD) @ 50 / 60 Hz
Resistance Basic Accuracy**: +/-(1.0% Rdg + 6 LSD)
Frequency Basic Accuracy**: +/-(0.5% Rdg +4 LSD)
Active Power (W): 0 to 600.0 kW
Active Power (W) Basic Accuracy**: +/-(2.0% Rdg + 6 LSD) @ Harmonics Fund to 10th & PF > 0.7
Reactive Power (VAR): 0 to 600.0 kVAR
Reactive Power (VAR) Basic Accuracy**: +/-(2.0% Rdg + 6 LSD) @ Harmonics Fund to 10th & PF > 0.7
Apparent Power (VA): 0 to 600.0 kVA
Apparent Power (VA) Basic Accuracy**: +/-(2.0% Rdg + 6 LSD) @ Harmonics Fund to 10th
Power Factor Basic Accuracy**: +/- 3 LSD @ Harmonics Fund to 21th
Temperature: -58 F to 572 F (-50 C to 300 C)
Temperature Basic Accuracy**: +/-(2.0% Rdg + 6F) +/-(2.0 % Rdg + 3C)
