> Nanomotion AB1A driver box AB1A-2A-hr-E8

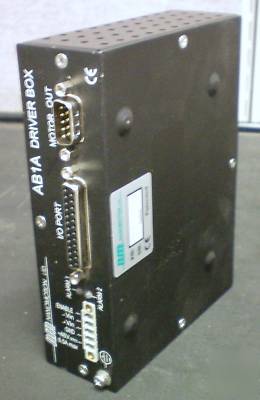

Nanomotion AB1A driver box AB1A-2A-hr-E8
The AB1A is a single-axis Amplifier Box designed to drive up to 32 motor elements in parallel.
The AB1A Card consists of DC/DC converters that provide the voltages necessary to operate the amplifier circuit: +5V, 12V, +3.3V. In addition, the card contains two LED indicators and the external interface connectors for the INPUT, MOTOR, and I/O signals.
The system configuration may require an LC Card that is connected either internally to the AB1A Card, or externally in a separate LC Box. If the LC Card connection is external, then it is required to connect an adapter card to the AB1A. The adapter card shorts the necessary pins to enable the connection of the external LC Card.
