> 30" 14 jones & lamson epic 130 optical comparator, qua
30" 14 jones & lamson epic 130 optical comparator, qua
30" 14 Jones & Lamson EPIC 130 OPTICAL COMPARATOR, QUA

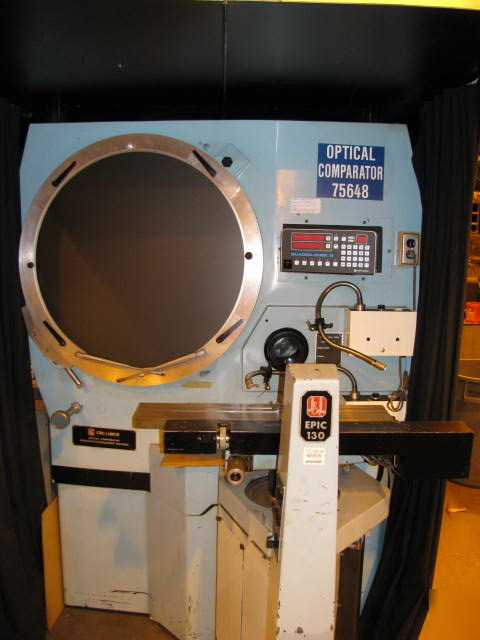

30" Screen 14 Jones & Lamson EPIC 130 OPTICAL COMPARATOR, QUADRA CHECK III DRO
30" JONES & LAMSON (MADE IN USA)
MODEL: EPIC-130 S/N: E67013 NEW: 1986
SCREEN DIAMETER ................................ 30"
SIZE OF WORK TABLE ........................... 6" X 30"
MEASURING CAPACITY (TRAVEL OF WORK TABLE)
LONGITUDINAL .................................... 8"
VERTICAL ........................................ 6"
ANGULAR MEASURING CAPACITY...... 360 DEG. CHART ROTATION
HELIX ANGLE ADJUSTMENT (TABLE SWIVELS, L&R)...... 10 DEG
CROSS TRAVEL FOR FOCUSING ....................... 1.5"
DISTANCE, LENS CENTERLINE TO TABLE:
MAXIMUM ......................................... 8- 1/4""
MINIMUM ......................................... 2- 1/4"
APPROX. DIMENSIONS ............. 61" L-R, 119" F-B, 83" H
MACHINE WEIGHT ............................... 2,500 LBS
"QUADRA-CHEK 111" 2-AXIS DIGITAL READOUT
w/PROGRAMMABLE GEOMETRIC FUNCTIONS
SURFACE ILLUMINATION (REFLECTION) ATTACHEMENT
** INSPECT IN ATHENS, ALABAMA **
