8 ch pci phone telephone system voice recording card

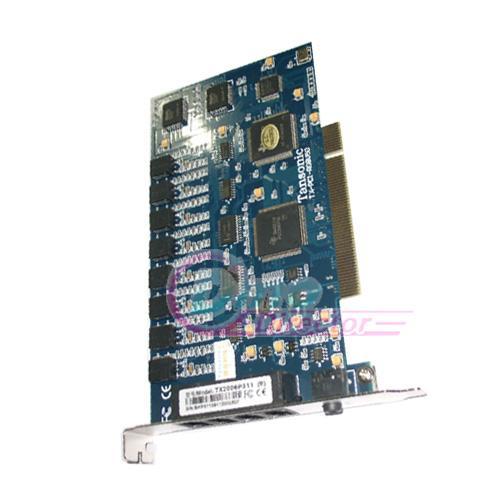

8 CH PCI Phone Telephone System Voice Recording Card
* Channel: 8 Channle, it can expand 8pcs to be 64 channel
* Compression Times: 1/2/4 of compression rate
* Recording Start Mode: Voltage, key, voice control
* Consume Power Maximum: 10w
* Frequency: 300-3400Hz( 3dB)
* Input Impedance: AC<8M ,DC<100K
* Data Speed: 16 Kbps, 32Kbps, 64kbps/1s
* FSK Concoct Mode: Logic 0: 2200Hz 1%, Logic 1: 1200Hz 1%
* Calling Monitoring: Signal sound, Voice, Polarity reversal
* DTMF Code: 0~9, *, #, A, B, C, D
* Exchange Function: 256 channel exchange directly
* Voltage control mode estimation standard 40-120V(Ringing) 18-48(Idle) 5-17V(Hook off) 3.2V (Hook on)
* WindowsNT, Windows2000 or Windows XP operation system
* CPU Speed > 800MHZ Pentium
* Can use PCI slot, more than one USB connection
* Harddisk 80G above,(Each G channel can record about 140h,40G can record 5600h,and 80G can record 1200h in compression rate 1:4)
* Monitoring enterprise operation and checking utilization rate of call and human resource for high rank people. Can also find action of benefit damage quickly and do some relevant measure to prevent that.Futhermore,phone recording system can make people devote themselves to work and improve working efficiency. Therefore can search new sales potential and orientation, also can provide with unexpected law proof for high rank people
* Offering evidence directly for some special occasion,also can play these information in the player
* Offering effect evidence for other field
* Connecting with Group Phone, PBX, it can do some call charge and record in the extension
* Software Operation System: Supports Windows2000/NT/XP/2003/Vista Simplified Chinese version,Traditional Chinese version,English Operation system
* Unanswered Call: If your telephone line has the CID function , and an incoming call was unanswered, the system would detect the CID and record it automatically
* Multi-way of Starting Record: The system has Pressure Control,Key Control,Sound Control and so on..Start time of recording can be set freely -can record some duration ,or record whole a day
* Direction Confirmation: Incoming call and Out-going call number automatically detection. Remark: If you need caller id function, and your outside line must be have caller id function
* Real Time Monitoring: Can monitor the channel on conversation without any disturbance to the line
* Recording Circularly Automatically: Can set 4 disk at most, which is harddisk or subarea. When the system operation disk will be fully,system will delete the foremost file automatically.So that the system can operate
* Call Management: Advanced call management function-Can list ,print and statistical all incoming and outgoing call number
* Log Management: The system has the integrity operation log,it can record all of the system operation
* Business Management: It can pop up the client's detail information of incoming call if you add the client information to your information bank.. It also can record your client's address,telephone number, business record and so on contents.This function becomes your business helper
* Extension Record: After the recording system is connected to PBX ,it will record the extension particular information and can designate which extension in not recording status
* Long-distance Management(FTP): It can upload the recording file to Server by FTP upload function,so that you can listen the recording even if you go on errands
* Inquire and Listen the Recording on the Network: If you install Tansonic recording system in one PC,and you can inquire and listen the recording file in the other PC on the Internet
* User Management: The system have multilevel user management function, different popedom use different function
* 1 x 8 Channel PCI Phone Telephone System Voice Recording Card
* 1 x Certificate of Competency
