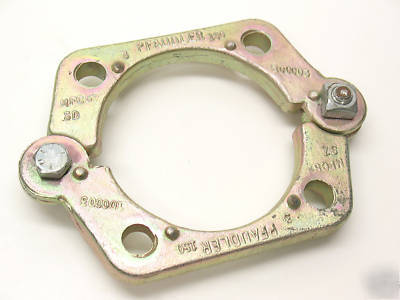

Pfaudler 1110003 split ring flange 3" 150# glass lined
ITEM: *Genuine* PFAUDLER Brand Part# 1100003 (flanges are stamped "1100003", current part# is 1110003) Split Ring Flange for Pfaudler Glass Lined Nozzle Connections, Squared Version (to accommodate application conditions where flange clearance is at a minimum), Zinc Chromated Forged steel Construction (type SA-181CL.60), Bolt Pattern According to Class 150 (ANSI 150#) ASME B16.5 drilling standards (for more information see Pfaudler Data Sheet DS65-300-3).
