Paul mueller accu-therm AT405 c-20 plate heat exchanger

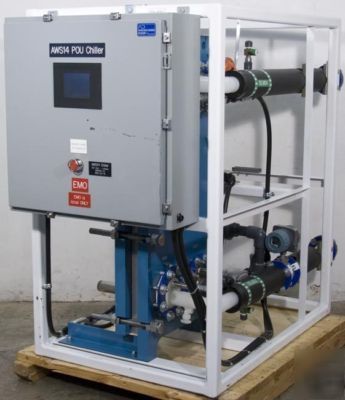

Paul Mueller Accu-Therm AT405 C-20 Plate Heat Exchanger
Specifications are from Paul Mueller and may vary slightly due to upgrades, options, or revisions this unit may or may not have.
Max. Working Pressure: 100 P.S.I.
Max. Working Temperature: 100 F
Number of Plates (Believed to be Installed): 14
Link to the Datasheet: Mueller Accu-Therm Series Plate Heat Exchanger Datasheet
Link to the Manual: Mueller Accu-Therm Series Plate Heat Exchanger Manual
* Phosphate tank heaters, seal water coolers, plating solution cooling, paint heating, welder water cooling, induction heater cooling, hydraulic oil coolers, quench oil heat exchangers, and cooling tower isolation.
* Brine cooling, water heating, and wort cooling.
* Caustic coolers, acid coolers, hydrogen gas coolers, and brine heaters and coolers.
* Process interchangers, brine heating and cooling, process water isolation, condensers, acid heating and cooling, and gas scrubber heaters and coolers.
* Sugar refining, fructose solution heating and cooling, whiskey recuperators, yeast coolers, starch coolers and heaters, corn syrup cooling, and edible-oil heaters and coolers.
* Cooling tower isolation, free cooling, heat pump systems, thermal storage systems, condenser water heat recovery, district heating and cooling, sea-water isolation, geo-thermal heating, engine cooling, lube oil cooling, fuel oil heating, generator cooling, and heating water with steam.
* Seawater isolation/exchanger.
* Quench oil coolers, plating heaters and coolers, anodizer heaters and coolers, strike solution cooling, and pickling tank heating.
* Oil refining, natural gas processing, offshore drilling, and petrochemical processing.
* Auxiliary cooling circuit isolation, condenser water isolation, co-generation applications, geo-thermal applications, refuse burning applications, lubrication oil cooling, and diesel engine cooling and heat recovery
* Digester heaters, blow-down liquor coolers, caustic soda coolers, boiler blow-down heat recovery, white water, and black liquor heating.
* Scrubber coolers, jacket water coolers, slab induction heating coolers, hydraulic oil cooling, mold water cooling, refractory liner cooling, roll oil cooling, and cooling of continuous casting installations.
* Heat recovery, caustic solution heating and cooling, washers, and dye concentrate heating.
These compact, cantilever-type frames are ideal for use where space is limited.
Specifications (For Model AT405):
Height: 56" (Does not include the frame and accessories)
Width: 27" (Does not include the frame and accessories)
Overall Dimensions: 69" D x 36" W x 60" H
* Picture 6 - Control Panel, Door Open
* Picture 7 - UPWS Water Inlet
* Picture 8 - UPWS Water Outlet
* Picture 9 - PCWR Water Return
* Picture 10 - PCWS Water Supply
* Picture 11 - Serial Number Tag
