Parker daedal 4-axis adjustable custom stage with prism

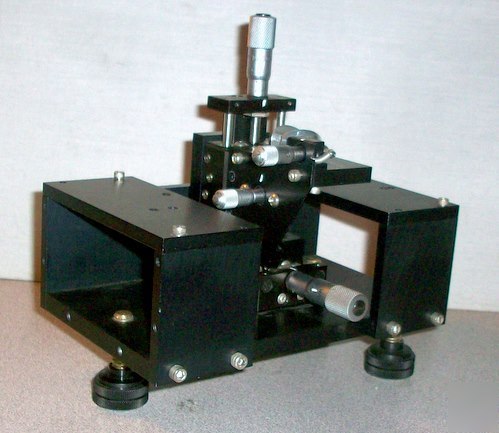

Parker Daedal 4-Axis Adjustable Custom Stage with Prism
Custom Adjustable Prism Mount Stage
This is a really unique and high-end Adjustable Optical Stage
I have never seen a Stage like this before
This stage setup has multiple axis of movement
There are Qty. 2 Paker Single Axis Linear Stages that are attached to make an XY Stage Setup.
Attached to the Vertical Axis there is another very interesting stage setup. There is some sort of Optical Prism that can Rotate or Tilt. There are Qty. 2 tiny micrometers by turning them you can rotate the prism or tilt the angle of the platform.
So overall this stage has 4-Axis of movement. The Stage has Qty. 4 Micrometers. There are 2 Tiny Mitutoyo Micrometers and the Paker Stages have Parker Daedal Micrometers.
This stage comes mounted and housed in a very nice custom base setup. The base has adjustable feet.
