New 25PCS alcoswitch DRS26 switch rotary dip mounting

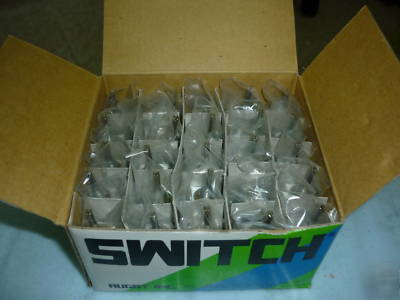

LOT OF 25! NEW in Manufacturer Box!
ITEMS ARE NEW/UNUSED 25pcs new in box!

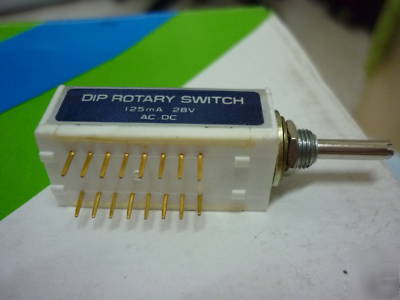

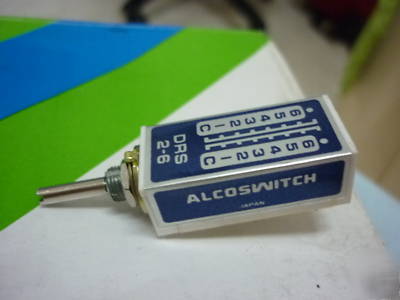

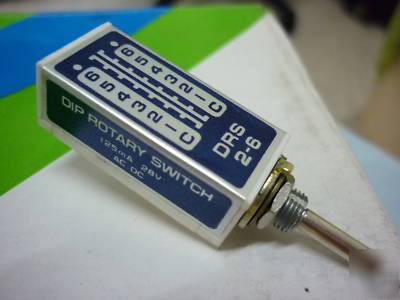

This lot of 25 pieces of ALCOSWITCH, 2 Pole, 6 position, part number DRS26, rotary switches
Alco Switch Rotary Dip Switches
Contacts ..................................Gold plate
Case Material ..........................Polyester
Actuator Material ....................Stainless steel
Terminals/Fixed Contacts........Gold plate
Terminal Seal ..........................Insert molded
Operating Temperature............-20 C to +80 C (-4 F to +176 F)
Storage Temperature................-20 C to +85 C (-4 F to +185 F)
Solder Heat Resistance............Manual: 270 for 3 seconds
TYPICAL PERFORMANCE CHARACTERISTICS:
Contact Rating 125mA @ 28 VDC/VAC
Initial Contact Resistance 200 Milliohms max.
Insulation Resistance 100 Megohms min.
Dielectric Strength 500 Volts RMS @ sea level
