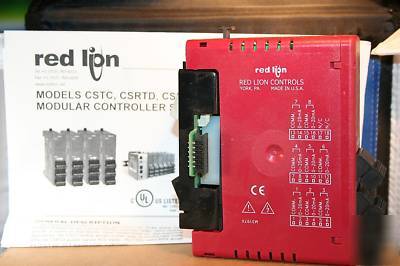

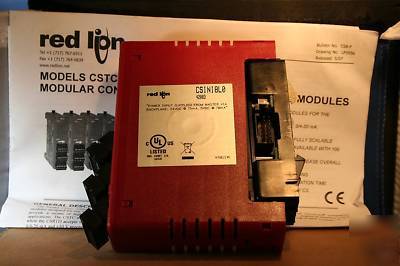

New red lion modular controller series master
RED LION MODULAR CONTROLLER MODULE
- Dedicated high density input module for the modular controller series
- Unused inputs can be disabled to increase overall reading rate
- Ideal for data-acquisition applications
- Auto addressing minimizes configuration time
- Can be used in conjunction with any CS Series modules
Power: Derived from system backplane (75 mA load on power input of MASTER)
* STS - Status LED shows module condition
* ALM - Alarm LED is lit during any internal alarm conditions
Memory: Non-volatile memory retains all programmable parameters. MASTER also stores the parameters in order to reprogram modules that are replaced
Isolation Level: 500 Vrms @ 50/60 Hz for 1 minutes between the Signal Inputs and CS Master Power Supply Unit
Communications: Provided by the CS Master
Construction: Case body is burgundry high impact plastic
Connections: Removable wire clamp screw terminal blocks
* Effective Resolution: Full 16-bit
* Programmable Scaling: +/- 30,000
* Sample Time: 50 msec to 400 msec, depending on number of enabled inputs
* Common Mode Reject: > 110dB, 50/60 Hz
* Normal Mode Reject: > 90 dB, 50/60 Hz
* Step Response Time: One scan time (to within 99% of final value)
* Max Continuous Overload: 100 mA
FOR FULL PRODUCT DETAILS AND SPECIFICATION PLEASE CLICK ON THE PICTURE LINK AT THE TOP OF THIS LISTING!!
