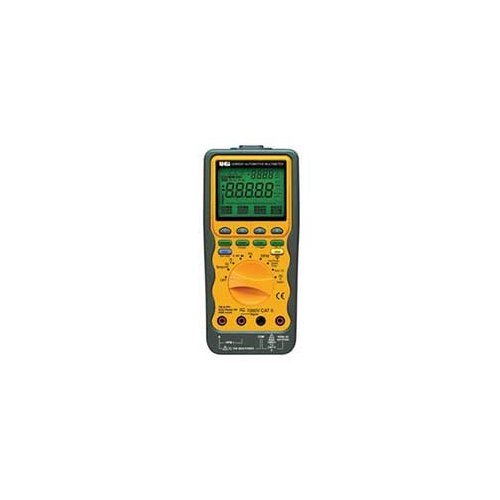

New automotive digital multimeter * *
Automotive Digital Multimeter *NEW*
Automotive Digital Multimeter Testing functions include: O2 Sensor Test, Ground Test, Battery and Alternator Charging System Test, and Battery Drain Test. Accurate RPM measurements for 2- and 4-stroke automotive engines with 1 to 12 Cylinders using the Inductive Pickup. ms-Pulse Width function to test on-time of both PFI type and TBI type fuel injectors. Duty cycle and direct DWELL reading. 4 steps adjustable triggers on 1 to 12 Cylinders. Temperature measurement up to 2,372degF or 1,300degC. 4 4/5 digit, 50,000 count primary and 9,999 count secondary dual display with bar-graph. (Frequency range: 99,999 counts) Backlit display. RS-232C Optically isolated serial port. Memory Store and recall (20 locations). Auto Hold, 50ms high speed MIN/MAX/AVG, & relative mode. 1ms Peak Mode. Auto-power-off. High impact over-molded case. CE-mark. IEC 1010.1-92, CAT II 1000 V Rating. 3 year limited warranty. Annual calibration suggested. Specifications:DC Voltage: 0 to 1,000 V AC Voltage: 0 to 1,000 V (40 Hz to 2 kHz) Basic Accuracy: DC V - 0.1%, AC V - 0.5% RPM (4 Stroke): 120 to 20,000 RPM RPM (DIS & 2 Stroke): 60 to 10,000 RPM DC Current: 0 to 10 A (20 A for 30 seconds) AC Current: 0 to 10 A (20 A for 30 seconds) Resistance: 0 to 50 MQ Frequency: 0.5 Hz to 1 MHz Duty Cycle: 0% to 99.9well: 0deg to 356.4deg Pulse Width: 0.50 ms to 250.00 ms Diode Test: 3.0 V Temperature: -58 to 2372degF (-50 to 1300degC)
* SKU: 526eb8dde416087e23a1f3e2d2daf5eb
