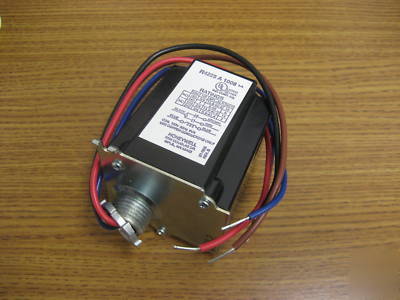

Honeywell R4225A1008 120V fan relay w/ spdt switching
Honeywell R4225A1008 120V Fan Relay w/ SPDT Switching, R4225A
Provide general purpose and heavy duty switching for refrigeration and air conditioning equipment, appliances, vending machines and similar applications.
Molded terminal numbers and circuit diagram on top of relay provide easy identification for wiring and checking system operation.
Untaped coil assures cooler operation.
Laminated magnet construction for higher efficiency.
Base designed for easy replacement of competitive relays.
Double quick-connect coil terminals. *Plug compatible with Steveco 90-340 and Mars 90340.
120 V Fan Relay with Spdt switching
Electrical Ratings, Contacts (full load)
N.O. 8.0A, N.C., 7.0A, Aux. 2.0A @ 240 Vac; N.O. 14.0A, N.C. 14.0A, Aux. 3.0A @ 120 Vac
Electrical Ratings, Contacts (locked rotor)
N.O. 48.0 A, N.C. 42.0 A, Aux. 12.0 A @ 240 Vac; N.O. 84.0 A, N.C. 84.0 A, Aux. 18.0 A @ 120 Vac
Electrical Ratings, Contacts (resistive)
N.O. 8.0 A, N.C. 7.0 A, Aux. 2.0 A @ 240 Vac; N.O. 16.0 A, N.C. 14.0 A, Aux. 3.0 A @ 120 Vac
2 11/16 in. high x 2 1/2 in. wide x 3 7/16 in. deep
68 mm high x 64 mm wide x 87 mm deep
UL Listed: File No. E14480, Vol. 1, Sec. 3, Guide No. NLDX
