26" swg 80" cc sharp 2680L 4.5" spdl bore engine lathe,
26" Swg 80" cc Sharp 2680L 4.5" Spdl Bore ENGINE LATHE,

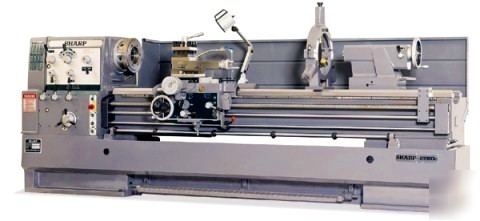

26" Swing 80" Centers Sharp 2680L 4.5" Spdl Bore ENGINE LATHE, 15HP, D1-11 Spindle Nose
NEW SHARP 4.5" SPINDLE BORE LATHE
Direct Selection For Inch/Metric Threads
Swing Over Cross Slide: 17.24
Spindle Nose Type: D1-11 camlock
Spindle Speeds (12): 15-1,500 rpm
Longitudinal Feeds - in/rev (18): 0.002 - 0.032
Cross Feeds - in / rev : 0.001 -0.0094 (17)
Inch Threads (#): 2-56 tpi (44)
Metric and Module Threads: 0.5-14mm (24)
Leadscrew Pitch, Diameter: 4 tpi, 1-1/2
Quill Travel (graduated): 6-1/2
Spindle Motor (220V or 440V, 60, 3ph): 15 hp
Net Weight (approx.): 6,200 LBS
Machine Manual, Half Nut Wrench, Wrench 17m, 19m, Set of 6 Allen
wrenches, Phillip Screw Driver, Flat Head Screw Driver, Oil can,
Grease Gun, Rear Way Cover Bracket, Pin for Indicator, Can of Paint
Rapid Traverse on Cross & Longitudinal
Taper Attachment (Factory Installed)
Quick Change Toolholder (Aloris) 7 pcs.
Live Center - Royal (Dual Bearing) MT#5
Factory Installation Charge (5C)
5C Collet Set (1/8 to 1/16 x 1/16 ) (16 Pcs.)
Factory Installation for all D.R.O. systems
