Opto 22 optoterminal G70 touch operator interface panel

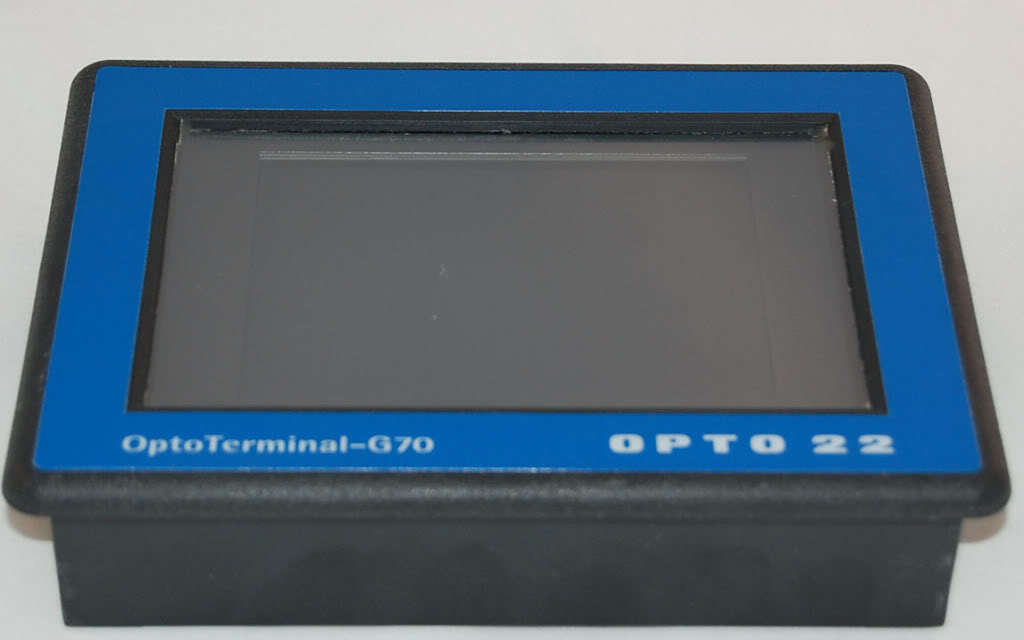

Opto 22 OptoTerminal G70 Touch Operator Interface Panel
RETAILS FOR $1295 ON OPTO22 WEBSITE
USED EXCELLENT - UNIT WAS PULLED FROM WORKING ENVIRONMENT BUT IS IN GREAT CONDITION
BOTH THE SOFTWARE AND USER MANUAL CAN BE DOWNLOADED FROM OPTO 22'S WEBSITE
OptoTerminal-G70: 256 colors, STN (passive matrix); 320 x 240 pixels at 0.36 mm dot pitch; 5.7 in. (145 mm) diagonal display; software-controllable contrast and brightness; cold-cathode fluorescent lighting.
Analog-resistive operation. Transparent touch area over viewable display, with a labeled touch area underlay on each side of the display.
10 Mbps Ethernet; EIA-232 serial port
Software programmable in pitch and duration
OptoTerminal-G70: NEMA-4 front panel; glass-filled polyester, UL 94V-0 flame rating. Accommodates panels from 0 to 0.28 in. (0 to 7 mm) thick with standard screws.
OptoTerminal-G70: 8.5 x 6.3 x 1.7 in. (215 x 161 x 43 mm); 2.5 lb. (1.16 kg)
OptoTerminal-G75: 13.0 x 10.2 x 2.2 in. (330 x 260 x 55.3 mm); 6.4 lb. (2.9 kg)
OptoTerminal-G70: 10 to 26 VDC; 450 mA @ 12 VDC or 275 mA @ 24 VDC (not including optional hardware)
