Wiedemann model magnum 5000 cnc turret punch press

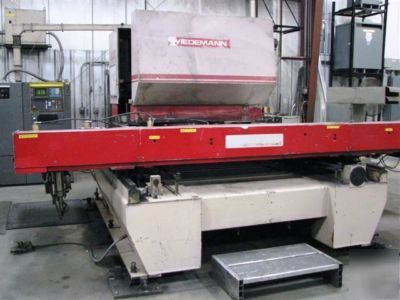

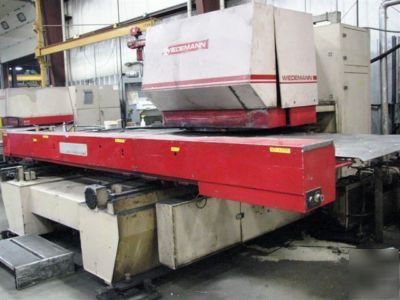

WIEDEMANN MODEL MAGNUM 5000 CNC TURRET PUNCH PRESS
MANUFACTURED 1992, S/N MWA602, RACO Stk# R015566
MAXIMUM SHEET THICKNESS - .375
MAXIMUM SHEET SIZE - 60" X 72" (WITHOUT REPOSITIONING)
MAXIMUM SHEET WEIGHT - 440 LBS.
TURRET CONFIGURATION - 52 STATIONS
( 20 ) UP TO 1" DIA. ( ROUNDS ONLY )
( 2 ) AUTO-INDEX UP TO 2" DIA.
TURRET SPEED - 30 RPM ( BI-DIRECTIONAL )
MAXIMUM HIT RATE - 200 HPM ( 1" INCREMENT MOVEMENT )
MAXIMUM HIT RATE - 450 SPM ( NIBBLING ) .200" MOVES
MAXIMUM TABLE SPEED - 2500 IPM

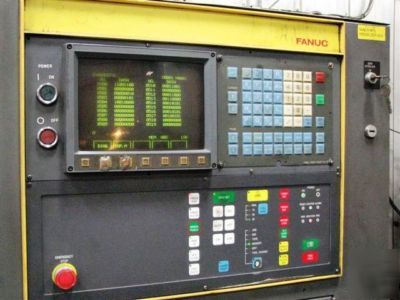

FANUC OP-B CNC CONTROL AUTOMATIC REPOSITIONING

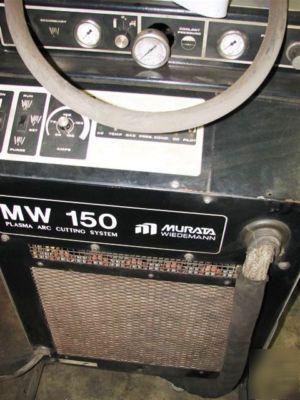

150 AMP PLASMA HYDRAULIC CLUTCH AND BRAKE
( 2 ) AUTO-INDEX STATIONS MISCELLANEOUS TOOLING
( 6 ) STATIONS ARE EQUIPPED FOR 112 STYLE TOOLING AND THE REST OF
THE STATIONS ARE EQUIPPED FOR 114 STYLE TOOLING
DIMENSIONS (IN.): 170 X 188 X 105
