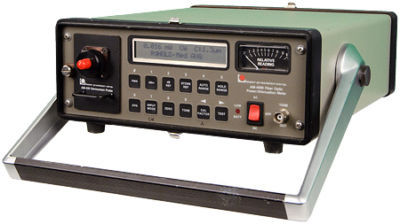

Laser precision am-4000 fiber optic power meter w/probe
Laser Precision AM-4000 Fiber Optic Power Meter w/Germanium Probe
Laser Precision AM-4000 Fiber Optic Power Meter with Laser Precision AM-420 Germanium Probe
Detector: Matched dual germanium diodes
Wavelength Range: 750 to 1800 nm
Minimum Frequency of Optical Input Pulses: 1 kHz
Minimum Duty Cycle of Optical Input Pulses: 10%
Full Scale Ranges: 9.999 mW, 999.9 W, 99.99 W, 9.999 W, 999.9 nW (-60 to +10 dBm, @ 1310 nm)
Toneout: 30 Hz to 3 KHz 1 V rms
Mixer Out: Synchronous mixer output signal
Sync Out: 30 Hz TTL level square wave for source modulation in synchronous AC mode
Direct Out: 0 to 10 V DC level proportional to power reading
Fiber Optic Power Meter w/Germanium Probe
