Krohn-hite model 3202R tunable filter
KROHN-HITE MODEL 3202R TUNABLE FILTER

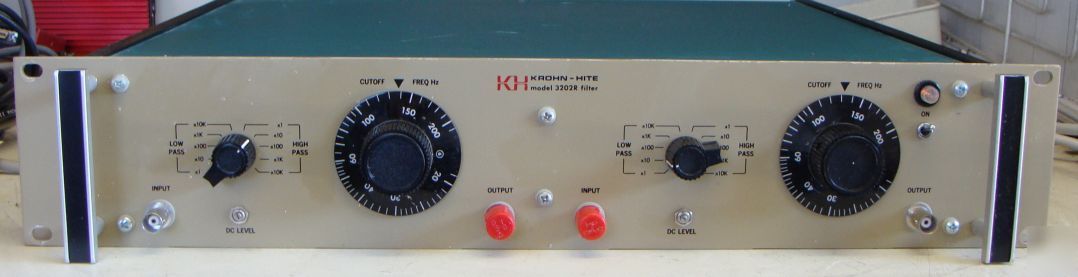

used filter which is in good working condition. DESCRIPTION The 3202R Dual Channel Tunable Filter is a rack mounted, all solid-state variable electronic filter with low-pass, high-pass, band-pass, and band-reject capabilities. Features: * 20 Hz to 2 MHz frequency * Attenuation slope series connection: High Pass - 48 dB per octave * Low Pass - 48 dB per octave * Band Pass - 24 dB per octave * 24 dB/octave parallel band reject * Butterworth or Fourth Order RC response * 10% calibration accuracy * < 100 uV RMS hum and noise * 80 dB maximum attenuation * Rackmount version . Sorry no instruction manual or other accessories.Cosmetically clean with minor scuffs and scratches.
