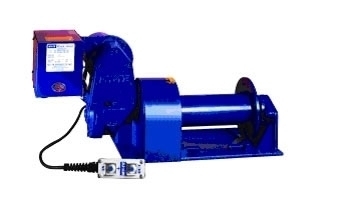

Electric hoist - industrial - 6,000 lb capacity
6,000 Lb Capacity Double Line / 3,000 Lb Capacity Single Line - 115/230V - 110 Ft Lift - Wire Rope - Includes Remote and 110 Ft of 3/8" Wire Rope - Designed to be used as Hoist or Winch
* Industrial Heavy Duty 3,000/6,000 Capacity - 115/230V Wire Rope Hoist and Winch-in-One with Remote and 110 Ft of 3/8" Wire Rope
* Ideal for in-plant use, or wherever there is ready access to a 115V or 230V power source
* Our Model VIRAC36 can handle the big jobs: it can move equipment, lift motors or heavy apparatus, or any load up to 6000 Lbs with double-line rigging (3,000 Lbs with single line)
* This industrial hoist features reliability and long life - from mounting to motor to gear system - everything about this winch-hoist is dependable. Our hoists undergo thorough testing before they leave the factory, and each hoist is backed by our warranty with individualized service, and when needed, we handle repair and component replacement quickly and efficiently
* Safety is built-in - the VIRAC36 protects its operator, not only through superb engineering, but also with remote hand controls. The switching is done through a 24 volt transformer and the two button hand switch on a 10 foot cord allows the operator to keep an eye on the load at all times
* Capacity Single Line: 3,000 Lbs
* Capacity Double Line: 6,000 Lbs
* Lift Speed @ 3,000 Lbs Single Line: 7.25 FPM
* Lift Speed @ 6,000 Lbs Double Line: 3.5 FPM
* Remote Control: Push Button
* Remote Control Cord: 110 Ft
* Motor: Brake disc - dynamic
* Clutch: None (available as option if using this unit as a winch)
* Gear System: 1430:1 gear ratio with double reduction gear drive. First reduction combines spur gears with hardened steel worm and forged bronze worm gear. Second reduction uses hardened heavy duty spur gears
* Mounting: 3/8" base drilled for six 1/2" bolts (9/16" mounting holes)

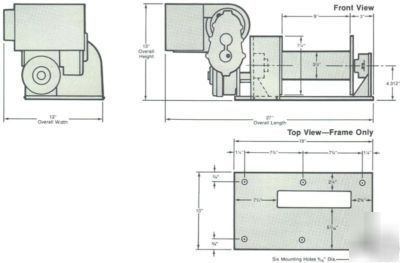

* Overall Dimensions: 27" L x 13" W x 13" H
