2007 atrump cnc bed mill vmc with centroid control

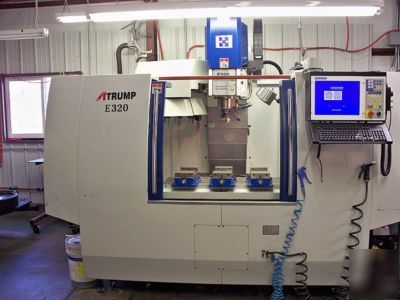

2007 ATRUMP E320 VERTICAL MACHINING CENTER with CENTROID M400S
This machine is in basically new condition. When the machine was placed in 2007 is was not used for one year.
This machine new today is $60,000. SPECIAL OFFER $45,900Call Jerry @ (***)-998-0985 for more information on this machine.
Centroid M400 control with 15 LCD
40 Spindle Taper 6,000 rpm spindle speed
Hardened & Ground ways with turcite-B coating guide way
C3 Double nut precision ball screws hardened & ground for high accuracy and long life
FC30 Meehanite Casting main frame with annealed & stress relieved for long term reliability
Laser tested for positioning accuracy & repeatability
4 Box ways design on Y axis to provide maximum rigidity & stability
Telescopic steel way cover on all three axes
Coolant System and air blast system
Travels (X axis): 33.9 Cross travel (Y axis): 20 Vertical travel (Z axis): 24
Spindle nose to table top (D): 4.8 -28.8
Load capacity: 1500 lb (680 Kg)
Spindle taper: 40 Taper Spindle Speed (r. p.m.): 6000 rpm
Spindle center to column front surface: 21.7
Rapid feed rate: X/Y/Z: 180 ipm DC, 360ipm
AC Cutting feed rate: 1-150 ipm
Motor: Spindle motor/max torque: 10HP Feed motors on XYZ
Power requirement: 14 KVA, 3 Phase 208-230 voltage
Automatic Tool Changer: No. of tools: 16
Length X Width X Height (LXWXH): 98.4 x 85 x 90
Way oil: Mobil Vactra #2 / Shell Tellus 32 /
Air tool oil Coolant capacity: 26 Gallons
More Special Offerings TAKE 50% off any of these options!!!
New Full Fourth Axis RT-200 AC Rotary Table $8,900
Includes: software, motor and cable
8 3-Jaw Chuck & Faceplate $1,120
DP-4 Probe & Probing Software $2,200
TT-1 Tool Touch Off Probe $755
Multiple Work Coordinates $700
Call Jerry @ (***)-998-0985 for more information
