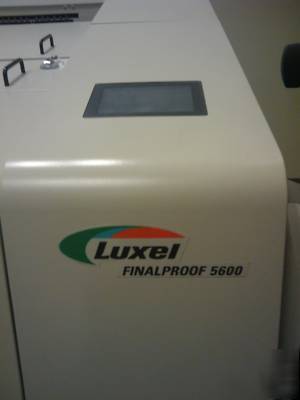

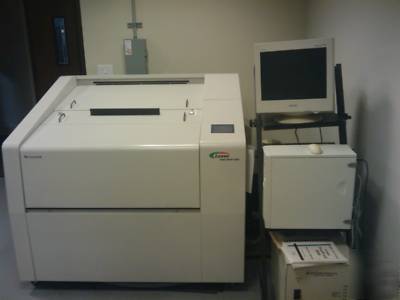

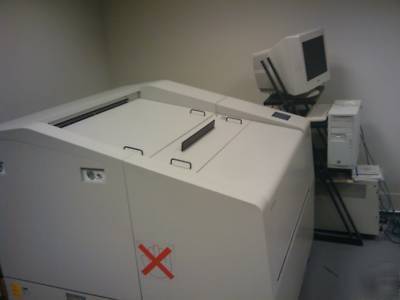

Used digital final proof proofer plus laminator
The Proofer has been certified by Fujifilm to be in excellent working order. Included with proofer is the Fuji 680T Colorart Proofing Laminator.
Contract-Quality Digital Proofing using Fujifilm's pigment-based colors. Generate true halftone screening on actual paper stocks at multiple resolutions.
* Contract quality true halftone dot digital proof
* Multiple resolutions: 2,400, 2,438 and 2,540dpi
* Maximum image area of 548mm x 820mm
* Fujifilm's exclusive Thin Layer Thermal Transfer technology
* New white and silver metallic donor - Ideal for the packaging applications
FINALPROOF 5600 Specifications
Image formation : Laser thin-layer thermal transfer output
Light source : 32 channel laser diode
Resolution : 2,400 / 2,438 / 2,540dpi
Throughput :A2: approx. 4 proofs per hour (2,400dpi) (depends on size of file)
Film size : A2 portrait and B2 portrait. Set at the factory
Color transfer film A2 portrait: 548 x 650mm
Receiver A2 portrait: 558 x 670mm
Mirror function : Y mirror reversal capability
Film loading : Completely automated film loading with auto-loader
Supply magazine : 7 rolls max. (Transfer film: 6; Receiver: 1)
External dimensions : 1,606mm (W) x 1,623mm (D) x 1,325mm (H)
Power requirements : Main unit: single-phase 200 to 230VAC 50/60Hz
Vacuum unit: single-phase 200 to 230VAC 50/60Hz
Power consumption : Main unit: 1.5kVA
