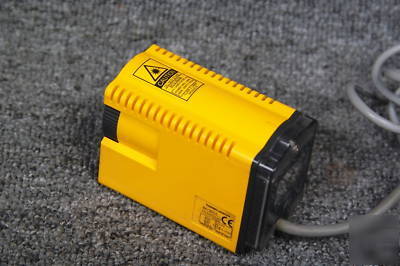

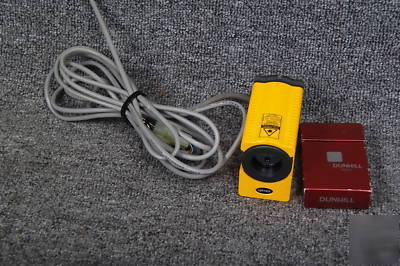

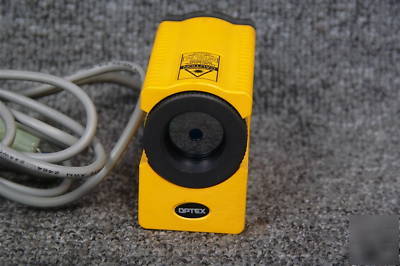

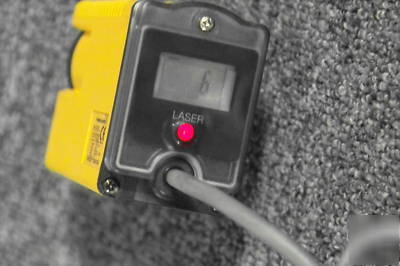

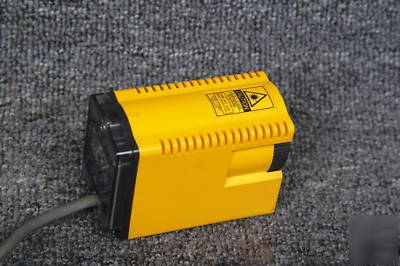

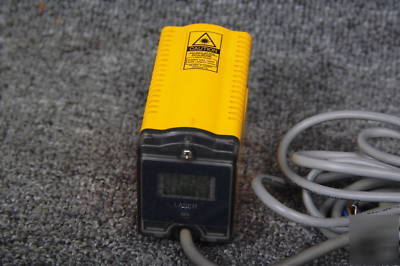

Optex temperature, thermo-hunter ba-30TA
USED / TESTED /EXCELLENT WORKING CONDITION
Measuring Range: 0 - 500 C (32 - 932 F)
Sensing Element: Thermopile/8 - 14 m
Accuracy: 1% of reading value or 2 C, whichever is larger (e=1.0)
Repeatability: 1 C of reading value

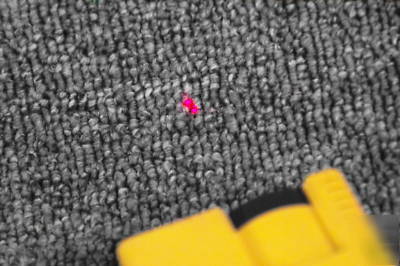

Sighting Method: Coaxial laser marker (Class 2)
Adjustment: 0.10 - 1.20 (0.01/1 step)
Power Source: DC 12-24V 10%, 150 mA
Temperature: 0 - 50 C (32 - 122 F)
Humidity: 35 - 85%RH (without dew condensation)
Temperature: -10 - 60 C (14 - 140 F)
Resistance: 3G (20-50Hz, according to JIS C0911)
Materials: Ring case: glass containing PBT; Rear cover: PC
Size: 45mm W x 68mm H x 92mm D (1.8" x 2.7" x 3.6")
