New ifs RS232/RS422: data tcvr, mm, 2 fibers, D1010 box

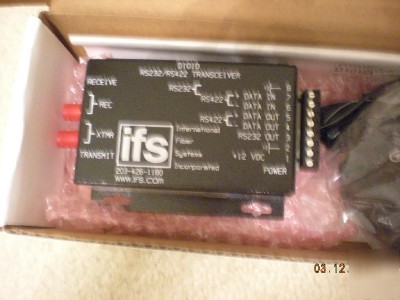

IFS RS232/RS422: DATA TCVR, MM, 2 FIBERS, D1010 NEW BOX
International Fiber D1010 RS-232/422 Point-to-Point Data Transceivers, MM, 2 FIBERS
The IFS D1010 is a data transceivers provide point-topoint transmission of simplex or duplex EIA RS232/RS-422 data signals over one or two optical fibers. The transceivers are transparent to data encoding allowing for broad-range compatibility. The transceivers are also compatible with the IFS D1010 is drop and repeat data transceivers when used as line terminating devices. Models within this series are available for use with multimode or single mode optical fiber. Plug-and-play design ensures ease of installation requiring no electrical or optical adjustments. Each transceiver incorporates power and transmit/receive data status indicating LED s for monitoring proper system operation. The modules are available in either stand-alone or rack mount versions.
* Meets EIA RS-232/422 Specifications (Simplex or Duplex)
* Transparent to Data Encoding / Compatible with Major Data Protocols
* No In-field Electrical or Optical Adjustments Required
* Power, Transmit and Receive Data Status LED Indicators
* Tested and Certified by an Independent Testing Laboratory for Full Compliance with the Environmental Requirements (Ambient Operating Temperature, Mechanical Shock, Vibration, Humidity with Condensation, High-Line/Low-Line Voltage Conditions and Transient Voltage Protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
* Integrated WDM for Greater Product Reliability
* Automatic Resettable Solid-State Current Limiters
* Hot-Swappable Rack Modules
* Distances up to 37 Miles (60 km)
* Comprehensive Lifetime Warranty
* Data Interface: RS-232 (data lines only), or RS-422 (see note)
* Data Rate: DC - 1.5 Mbps (NRZ)
* Operating Mode: Asynchronous Simplex or Full-Duplex
* Bit Error Rate: < 1 in 10?
* Wavelength D1010: 850 nm, MM D1010WDMA: 850/1310 nm, MM
* D1010WDMB: 1310/850 nm, MM D1020: 1310 nm, MM
* D1030: 1310 nm, SM D1030WDMA: 1310 nm, SM
* Number Of Fibers D1010: 2 D1010WDMA: 1 D1010WDMB: 1 D1020: 2
* D1030: 2 D1030WDMA: 1 D1030WDMB: 1
* Data and Power: Terminal Block with Screw Clamps
* Surface Mount: 12 VDC @ 150 mA
* Current Protection: Automatic Resettable Solid-State Current Limiters
* Circuit Board: Meets IPC Standard
* Surface Mount: 4.2 x 4.0 x 1.0 in., 10.7 x 8.9 x 2.5 cm
* Rack Mount: 7.0 x 4.9 x 1.0 in., 17.8 x 12.5 x 2.5 cm
* Operating Temp: -40 C to +74 C
* Storage Temp: -40 C to +85 C
* Relative Humidity: 0% to 95% (non-condensing)
Note: We purchased this a little over 4 months ago, but never used it. Thanks...
