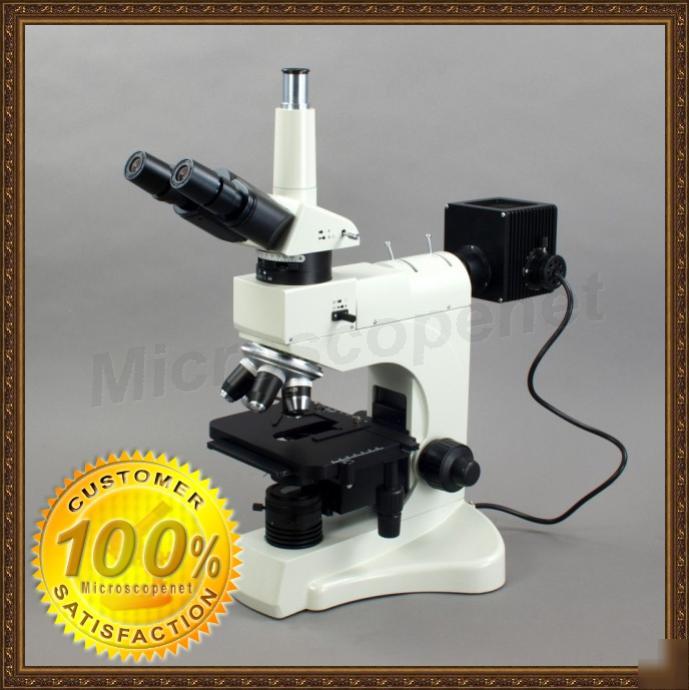

Lower/upper light metallurgical polarizing microscope
Metallurgical Trinocular Microscope
Metallurgical microscope is widely used for metallurgical, mineral identification and crystal, electronic integrated circuit examination and research. It is available to be supplied with transmitted illumination, imaging and viewing system and accessories as a biological microscope for medical institute use.
* Professional and versatile: Polarized light; Dark field; Bright field; Compound; transmitted and reflected illumination systems
* 12 levels of magnification: from 40x to 1600x
* 7 infinitive plan field achromatic objectives
* Kohler (transmitted) illumination and reflected illumination systems
* Two pairs of eyepieces plus one with cross hair reticle
* Hinge interpupillary distance adjustment
* Large mechanical stage with a large moving range
* Adjustable ocular diopter on left eyepiece tube
* 3 color (yellow, green, blue) filters included
* Nosepiece: quintuple (2 holes for DF/BF objectives, 3 holes for BF objectives)
* Eyepieces: 2 WF10X/18, 1 WF10X/18 with crosshair reticle, and 2 WF16X
* Objectives: infinitive plan field achromatic, 3 for brightfield: 4X, 40X and 80X; 2 for brightfield and darkfield:10X and 20X; 2 for biological examination: 40X and 100X
* Total magnification: 40X-64X-100X-160X-200x-320X-400X-640X-800X-1000X-1280X-1600X
* Condenser: Abbe condenser with iris
* Reflected illuminator: 6V/50W halogen
* Transmitted illuminator: 6V/20W halogen
* Large mechanical stage: 185mm x 137mm
* Large stage moving range: 75mm x 55mm
* Focus adjustment: Coaxial coarse & fine knobs on both sides with adjustable tension control and moving limit lock
* Power supply: 110V/60Hz (US and Canada plug)
* Dimension: 17 3/4"x 11" x 18" (45cm x 28.4cm x 46cm)
* Net weight: 29lb 13oz (13.5kg)
* 0.01 mm stage micrometer slide
* Digital USB2.0 cameras for computers
* Convertion power plug for UK
Click the button above to view the list of parts and accessories for this product M831TRM
