Velleman K7105 handheld lcd oscilloscope -built

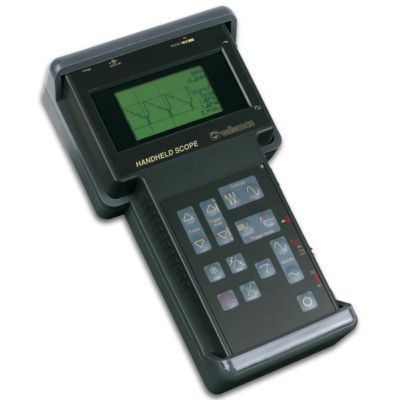

HANDHELD LCD OSCILLOSCOPE Velleman K7105 This handheld scope features options never seen in its category. It is packed with handy features which enables you to perform on-the-spot measurements quick, easy and accurate. Its high-contrast, wide viewing angle LCD screen enables operation under normal daylight conditions. All functions are accessible by means of a tactile keyboard with a pleasant touch feeling. The current operating mode is displayed on-screen. If desired, auto-setup mode takes care of all scope settings for instant visualisation of waveforms. The marker function enables you to make accurate measurements of voltage, time and frequency. Acting as a DVM, it displays True rms, dB, peak-to-peak and DC volts. With its built-in variable gain sine generator, it allows easy service of audio equipment, etc. Probe transient response can be adjusted using the calibration output. Finally, a RS232 port enables screen data to be sent to a PC for use in different applications. A charge circuit with indicator LED for rechargeable batteries is provided. Features true RMS or peak to peak read-outdB measurementsmarkers for voltage and timeauto setup functionDC readout with zero reference functionfrequency readout through markersdot join functionscreen hold functiongrid or ruler functionadjustable trigger leveltrigger mode: normal, auto or singletrigger edge: rising or fallingwaveform memory (1 location only)RS232 data output to computerauto power off (can be disabled) Specifications maximum sample rate for repetitive signals: 5MHzmaximum sample rate for single shot events: 0.5MHzinput impedance: 1Mohm // 20pFmaximum input voltage: 100Vp (AC + DC)input coupling: DC, AC and GNDvertical resolution: 8 bit (6 bits displayed on LCD)dB range: -73dB to +40dBlinearity: 1 bit (of 8 bit data)LCD: 64 x 128 pixelstimebase: 2 s to 20s / div in 22 stepsinput sensitivity: 5mV to 20V / div in 12 stepssinewave generator: 400Hz / 1Vrms // 1Kohm (adjustable)square wave output: 400Hz 3.5Vpppower supply: 9VDC / 300mArechargeable battery: 6 x type AA / 800mAhcharge current: 90mAcharging time: 14 hoursautonomy: 5 hoursoperating temperature: 32 F to 122 Fdimensions: 5.1" x 9.1" x 1.7"options: isolated probe: PROBE60Smains adapter: PS905USA Files usermanual_k7105.pdf manual_k7105.pdf Extra information Hints Use a 9V DC non-regulated powersupply (PS905), or a 12 V DC regulated power supply. Do NOT use a non-regulated 12 V powersupply.The use of alkaline batteries is NOT
