Park yukon dimensioning granite marble stone bridge saw


This listing is for saw / CNC system.
* Original Price: Approximately $65,000
* Known Specs (further information, listed by the manufacturer, is listed below)
* 14-14" Blade Diameter Range
* Gantry Travel: 11' 6"
* Cross Travel: 11' 8"
* Rise and Fall Travel: 12"
* 0-47 Degree Bridge Miter Range
* Variable Gantry / Traverse / Rise & Fall Control
* Laser Guidance Marking System

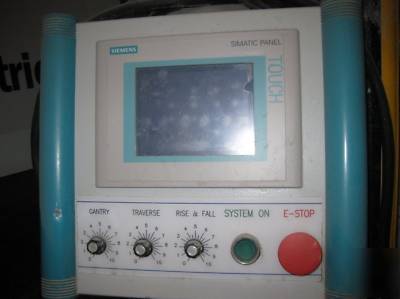

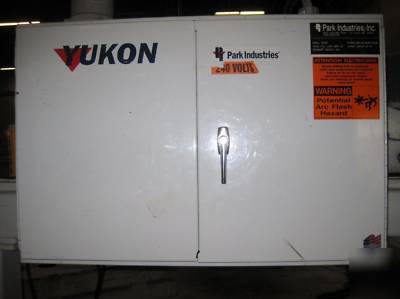

* Siemens Control w/Simatic Panel Touch Screen

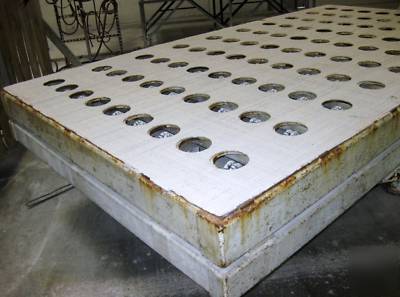

* Pneumatic Pop-Up Rollers

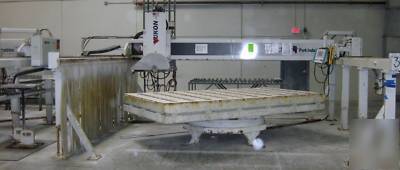

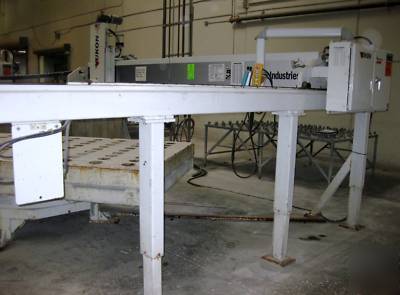

* Description: Dimensioning Saw / Bridge Saw
* Advanced, operator-friendly control unit featuring joystick and touch-screen controls
* Spanish-language controls
* 10 auto-mode programmable cut widths
* 20 HP arbor motor, handles up to 24 diameter saw blades
* 0-47 degree bridge miter
* Three programmable single-cut widths with user-defined distances
* Programmable limit stops for cross-head travel distance and height
* Increased length of control swing arm
* Automatic step cut with final pass
* Maximum sawing depth with diamond blades designed for granite: 2-1/4" with 14" blade, 3-1/4" with 16" blade, 6-3/4" with 24" blade
* Maximum tool width: 1-1/2"
* Blade housing built to accept 24" blade (maximum)
* Blade center hole to fit a 50mm arbor shaft
* Blade mounted on left side of bridge as viewed by operator
* Blade flange size: 8-1/2"

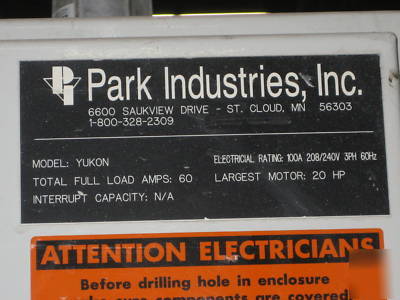

* Main motor size: 20 HP AC, 1150 RPM across the line starters, TEFC motor
* Main drive system: Direct drive
* Bridge miter with portable digital angle indicator (accurate to 0.1 degree): 0-47 degree manual position and lock
* Track type wire/hose distribution system for cross-head travel
* Cross-head travel distance: 144" travel provides 136" plunge cut in 4 cm (1-1/2") thick material with 14" blade
* Cross-head travel speed: 1-50 FPM, variable-speed AC drive, TEFC motor

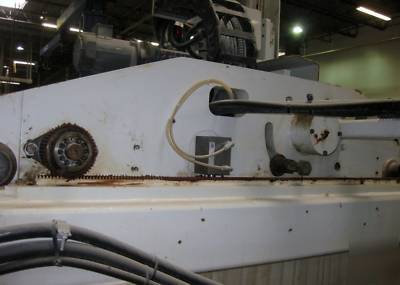

* Cross-head travel drive: Rack & pinion

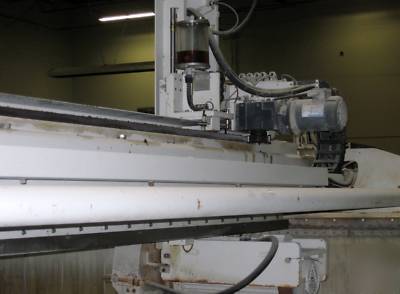

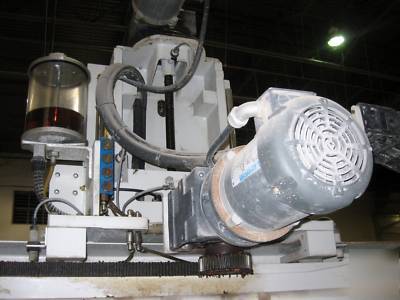

* Cross-head travel guides: Dual round linear ways with precision slide bearings and automatic oil system
* Raise and lower drive: variable-speed AC drive; screw driven

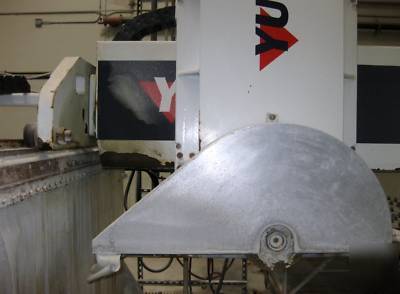

* Fixed blade cover: includes ball valve and water hose and water forks for water application to blade
* Standard gantry rails: 198" in length, 11' 6" cutting area
* Gantry drive speed: 1-20 FPM, automatic air brakes
* Joystick or touch-screen gantry controls
* 3 pre-set move single-cut widths and added +/- direction toggle
* Improved procedure for changing cut-modes
* Two storable preset X axis soft limits
* Programmable rodding soft limit to Z axis
* External pushbutton arbor control switches

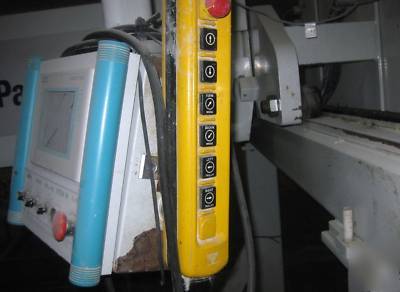

* New pendant control design
* New coiled pendant cable
* Simplified screen navigation and improved labeling
* Merged manual and semi-automatic functions into one function for making single cuts
* Adopted X-Y-Z coordinates to describe direction of movement
* Improved touch-screen interface with fast refresh speed
* Y axis joystick has center lock to prevent accidental movement
* User-selected Spanish or English language controls
* Improved alarm screens with troubleshooting guide
Park's online product page is located at http:// /content/view/21/22/
* AZ to NV/UT/NM/CO - $700
