New band saw, SN255 mrm, cutting, saws, pedrazzoli

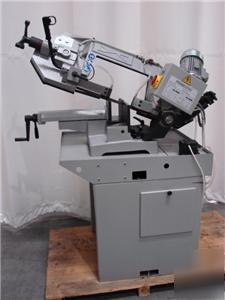

NEW BAND SAW, SN255 MRM, CUTTING, SAWS, PEDRAZZOLI
Price is only available for one unit
Exceptional cutting capacity MACHINE FEATURES:
All main machine components are in cast iron: monolithic bow, bow support with hinge pin, centring ring, reducer box, vice base and vice carriage.
Bow rotation for angled cuts from 0 to 45 left with pre-set stops at 0 & 45 , graduated line, mechanical stops and lever for intermediate positions.
steel resting base in with groove for band. Base turns in conjunction with bow so it supports parts even during angled cuts and prevents cutting into vice base.
Deep angled opening in vice base to improve swarf discharge.
2-speed three-phase motor (0.75/1.1 Kw)
transmission carried out by means of screw-ring reducer in oil bath 1:40 ratio for 36-71 m/min speed. ( the single-phase machine has only 1 speed)
Bow inclination, blade development and fly-wheel diameter have been calculated so as to limit the yielding of band and increase its life-span.
Mechanical tensioning of band with spring to ensure uniformity and constancy of tightening
19mm band supported by two blade-guides with hard metal plaques, adjustable in relation to dimensions of part to be cut.
Electro-pump for lubrication/refrigeration of bands
Mechanical vice group adjustable, with lever for rapid closing, hand wheel for slow closing and lever for rapid clamp.
Accident prevention safety devices: fly-wheel guards with motor stop in case of opening, blade protection guards, blade start with man-present protection against accidental start-up, low voltage controls, lockable main switch.
Possibility of making calibration of mechanical stops at 0 and 45 left, of balancing springs, of hinge pin and of bow s perpendicularly to ensure cutting precision remains constant in time.
