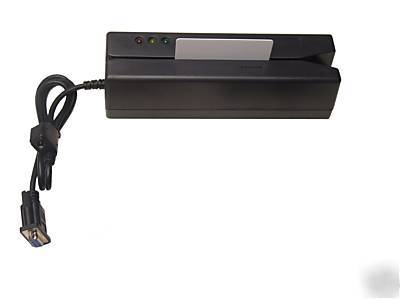

Magnetic credit card reader writer encoder hico msrw


Windows Vista Ready ! Also run on all Windows XP, 2000, 98, 95 even a DOS version.
BRAND NEW, READY-TO-WORK SET with 30-day free labor and parts mail-in warranty *.
BATCH READ/WRITE CARDS INTO/FROM A FILE YOU MADE ( need extra software skill. we do not offer support ).
This is our lowest priced Hi-Co Track 123 Writer with full function read/write/rewrite, and ERASE function
WITH FREE USB TO SERIAL ADAPTER;
-Hardware Relay Switching Hi-Co vs. Lo-Co ( same as MSR206 )
-High Current Cement Resistor in writing circuitry for reliable performance
-Software decoding Fast CPU technology to reduce cost with similar read performance
( MSR 206 uses hardware chipset decoding in reading cards )
-using 24 PCS of powerful Darlington Triodes to simulate MSR206 writing chipset at much lower cost
( MSR 206 uses hardware chipset writing at higher cost)
IMPORTANT NOTE ON FREE SOFTWARE:
the free software is full functional, you can use it forever, this is the ONLY software to operate this MSRW-509-3HL.
1). Brand New Magnetic Card Reader/Writer MSRW-509 Track 1/2/3 Hi-Co & Lo-Co ( HiCo=2750 oe. LoCo=300 OE. ).
2). 110~220 AC/DC 12V 1.5 A. Switching Power Adapter & Power Cord.
3). 1 Blank PVC Test Cards, HI-CO
4). Full functional software download link; NO CD; NO PAPER OR CD MANUAL.
READ: This device CAN read all Track 1/2/3 Hi-Co & Lo-Co standard magnetic cards:
WRITE: This device CAN write/re-write/erase all Track 1/2/3 Hi-Co / Lo-Co standard magnetic cards at HiCo-2750oe/LoCo-300 oe.
You must have this kind of serial port with your desktop computers. ( com:1 or com:2 ), or you have to use our FREE USB-serial adapter.
ISO Magnetic Stripe Card Standards
The majority of magnetic cards used in the UK, Europe and USA confirm to the following ISO standards for magnetic cards.
Magnetic Stripe - Low Coercivity
Location of Embossed Characters
Magnetic Stripe - High Coercivity
Full copies of these standards can be pruchased from www.iso.org and www.ansi.org. The information below is abstracted from these standards.
(including control characters)
0.223" (5.664mm) from card edge
Longitudinal Redunancy Check Character
Data stored on magnetic stripes does not use the standard ASCII character set as used on PCs. Below are the two ANSI/ISO character sets used on magnetic stripes.
The ANSI/ISO ALPHA format is 7 bit, 6 data bits + 1 parity bit (odd). The data is read least significant bit first.
The character set contains 64 characters, 43 alphanumeric, 3 framing/field characters and 18 control/special characters.
The ANSI/ISO BCD format is 5 bit, 4 data bits + 1 parity bit (odd). The data is read least significant bit first.
The character set contains 16 characters, 10 alphanumeric, 3 framing/field characters and 3 control/special characters.
1). For Proper Business Use & Individual Research ONLY.
2). We do not take any responsibility for what this product may be used for,
any request for supporting in cloning any kind of card will be REFUSED and DENIED.
1). EMAIL SUPPORT ONLY. / Monday- Friday /.
2). NO TELEPHONE SUPPORT WILL BE OFFERED. PLEASE DO NOT REQUEST. THANK YOU !
Typical 350mA Max. 950mA plus for each writing track
External Switching power 12V/1.5A
215 (L) x 60 (W) x 60 (H) mm. Approx. 1.0 Kg including packing
Manual swipe, Single direction
Operation : -10 to +40 c, 10 to 85% humidity
Storage : -30 to +50 c, 10 to 90% humidity
Read Hi-Co/Lo-Co; ( 300-4000 oe.)
Write Hi-Co/Lo-Co; ( 2750/300 oe.)
STD card : 5~55ips, Jitter 15% : 5~50ips, Amp.60% : 5~50ips
Interval < 10%, Sub-interval < 12%
ALL SALES FINAL; NO RETURNS; NO REFUND.
30 DAY MAIL-IN EXCHANGE/REPAIR WARRANTY ONLY.
