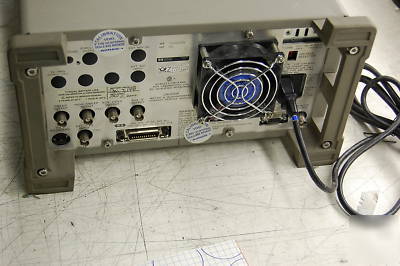

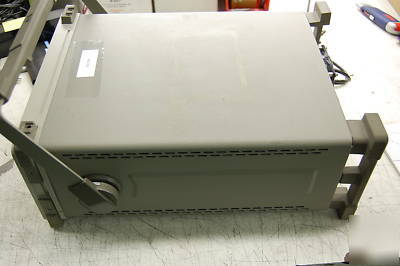

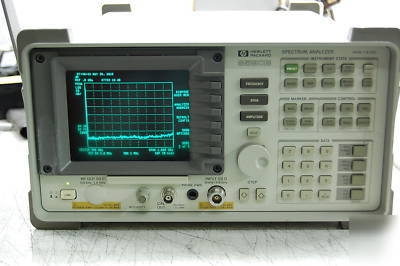

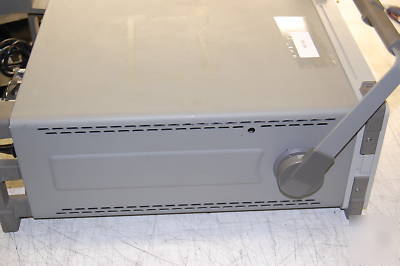

Hp 8590B spectrum analyzer 9 khz to 1 .8 ghz opt 021
HP 8590B SPECTRUM ANALYZER 9 kHz to 1 .8 GHz OPTION 021(GPIB)
The HP 8590B model offers basic RF and microwave measurement performance. The HP 8590B has a frequency range of 9 kHz to 1 .8 GHz, a 50 ohm input, and a weight of only 13.6 kg (30 pounds). Amplitude range is a wide -115 to +30 dBm. You can change the test capabilities of these spectrum analyzers to fit specific measurement needs. Complex measurement routines and test limits are available at a keystroke.
* Frequency Range: 9 kHz to 1.8 GHz
* Readout Accuracy: (5 MHz + 1% of frequency span)
* Span Range: 0 Hz, 50 kHz to 1.8 GHz
* Sweep Time: 10 ms to 100 s
* Sweep Trigger: free run, single, line, video, external
* Amplitude Range: -115 to +30 dBm
