Keithley 2001 w/2000-scan 7-1/2 digit multimeter dmm

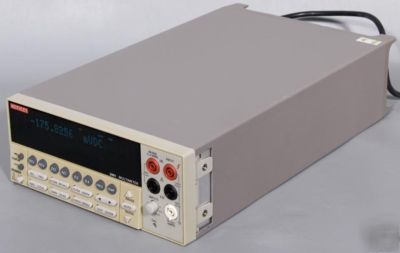

Keithley 2001 7-1/2 Digit Digital Multimeter with a 2000-SCAN 10-Channel Scanner Card
Comes with a manual, power cord, and what you see in the pictures. If you don't see it, you probably wont get it.
List Price is: $4,803.00 NEW from Keithley
Link to the Specifications: Keithley 2001 Multimeter Specifications
Link to the Datasheet: Keithley 2001 & 2002 Digital Multimeter Datasheet
Link to the Brochure: Keithley 2000 Series Digital Multimeter Datasheet
Link to the Manual: Keithley 2001 Digital Multimeter Manual
* True 7-1/2 digit resolution
* Exceptional measurement integrity with high speed
* Broad range of built-in measurement functions
* Built-in 10-channel scanner option (This option is included.)
* IEEE-488.2 and SCPI compatible
* Multipoint scan/measure solution with optional plug-in cards.
DMM users whose applications demand exceptional resolution, accuracy, and sensitivity combined with high throughput now have two attractive alternatives to high priced, high-end DMMs. Keithley's 7-1/2 digit Model 2001 and 8-1/2 digit Model 2002 High Performance Digital Multimeters not only deliver performance specifications usually associated only with instruments that cost thousands more, but they also offer a broad range of functions not typically available from DMMs.
2001 Multimeter Specifications (Additional Specifications in Brochures and Manuals):
Maximum Reading: 775 V (1100 V pk)
Reading Memory: Opt. to 30,000
Temperature Measurement: T/C, RTD
Dimensions: 89 mm H x 213 mm W x 370 mm D (3 1/2" x 8 3/8" x 14 9/16")
2000-SCAN Scanner Option Specifications:
General: 10 channels of 2-pole relay input. All channels configurable to 4-pole.
Capabilities: Multiplex one of ten 2-pole or one of five 4-pole signals into DMM.
DC Signals: 110 VDC, 1 A switched, 30 VA maximum (resistive load).
AC Signals: 125 VAC rms or 175 VAC peak, 100 kHz maximum, 1 A switched, 62.5 VA maximum (resistive load).
Contact Life: > 105 operations at maximum signal level; > 108 operations cold switching.
Contact Resistance: < 1 at end of contact life.
Actuation Time: 2.5 ms maximum on/off.
Contact Potential: < 500 nV typical per contact, 1 V max. < 500 nV typical per contact pair, 1 V max.
Connector Type: Screw terminal, #22 AWG wire size.
Isolation Between Any Two Terminals: > 109 , < 75 pF.
Isolation Between Any Terminal and Earth: > 109 , < 150 pF.
Common Mode Voltage: 350V peak between any terminal and earth.
Maximum Voltage Between Any Two Terminals: 200 V peak.
Maximum Voltage Between Any Terminal and Model 2001 Input LO: 200 V peak.
Environmental: Meets all Model 2000 environmental specifications.
Dimensions: 21 mm H x 72 mm W x 221 mm D (0.83" x 2.83" x 8.7").
Weight: Adds 0.4 kg (10 oz.)
