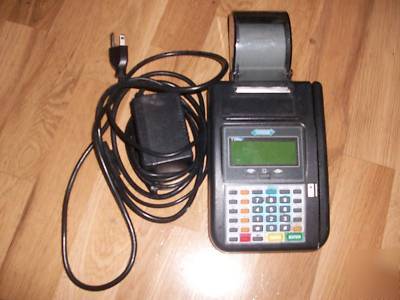

Hypercom T7PLUS credit card terminal machine T7 plus
NO MERCHANT ACCOUNT REQUIRED TO PURCHASE THIS ITEM
Compact design Available in 35 and 19-key configurations
"One-touch" feature Allows common functions at the push of a button
Multi-merchant feature Up to 20 unique merchant IDs in one terminal
Value-added application support Check, loyalty, EBT and prepaid applications
Trusted & stable Low failure rates
Security Boot lock feature protects against unauthorized reloading
Convenience at the Point of Service
Simple, Easy to Use Features
One-touch capability initiates all daily functions with one straightforward step, which makes for easy operation and reduced training times
Full-featured, secure terminal management system including local or web-based options
Industry-leading software includes the functionality necessary to introduce value-added opportunities to the merchant in an integrated application.
Download remotely in a fraction of the time to load other terminals with an optional 56K modem
For deployment, use the terminal cloning feature with a fast-load cable to download terminals even faster. Use a multi-loader to download up to 12 terminals simultaneously!
Graphics-capable thermal printer produces receipts in half the time of previous generation printers, which allows merchants to print logos and coupons directly at the POS.
For challenging installations that have limited phone lines to spare, the integrated RS-485 capability enables multiple units to utilize one phone line through the addition of a Hypercom dial concentrator
Backwards compatible with existing T7 family software for an extensive software library, which reduces training time and certification requirements
Hardware Specifications
Elastomeric: 35 keys; water splash-resistant;
19 key,3 soft key (optional)
Backlit: 2 lines x 20 characters (standard)
Backlit: 4 lines x 20 characters (optional)
Magnetic stripe: Tracks 1,2 standard, Tracks 1,2,3 (optional)
Chip card: Non-captive, ISO7816, EMV compliant; 4 SAM sockets
Modem: 2400bps (standard), 56K (optional); synchronous (SDLC) and asynchronous
PIN pad port: Singular
Ethernet: Optional, without SSL
SureLoad clamshell design, drop-in loading, thermal technology, 384 dots per line
Paper roll: 2.25 (standard), 3 (optional); 57mm x 80mm
RAM backup: 5-year battery
AC: 100-240V, 50/60 Hz
Physical: Intrusion detection
Key management: 12 master/session keys 0r 1 DUKPT;
10.0 in x 5.18 in x 2.5 in/25.4 cm x 13.2 cm x 6.35 cm
1.5 lbs/0.68 kg approximate
Temperature: 0-45 C/32-113 F
Humidity: max 85%, non-condensing
