New veterinary surgical multiparameter patient monitor
Very good service; would deal with them again!
VETERINARY MULTIPARAMETER SURGICAL MONITOR,NEW BRAND-! (#130237025163)
NEW-! VETERINARY MULTIPARAMETER SURGICAL MONITOR

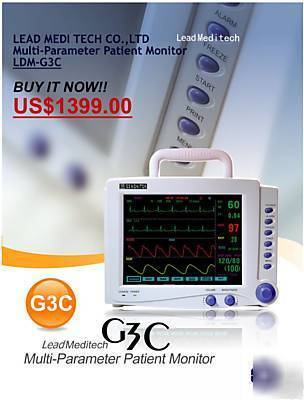

Veterinary Multiparameter Monitor: LDM-G3C Veterinary Monitor
G3C with big character display format G3C with nasal cavity pipe
Interface in nasal cavity RESP
1.Displayer: 10.4" color TFT LCD screen with maximum 7-waveform display. Adjusting of lightness continuously make patient more comfortable in midnight
2.Battery: Rechargeable high-energy built-in battery
3.Advanced streamline outline design, portable, compact, lightweight
4.Operating menu with multi-language interface selection: English, Spanish, Portuguese, Chinese, French, Arabic, Russian, etc.
5.Easy operation with user friendly menu structure design and rotary dial
6.Against electrosurgical interference and defibrillation and no need to disconnect the monitor from the patient in process of defibrillating.
7.WAN communication function to network with central monitoring system and make long-distance monitoring, diagnosis, maintenance and software upgrade possible
8.Optional built-in wireless networking function
9.Support external printer to record graph and trend
10.Intelligent audio and visual comprehensive alarm
11.In-hospital applications include emergency pre-and post-operative care, ambulatory surgery, intermediate care/step down units, labor and delivery, and hospital-based special procedure areas.
12.Suitable for use in physicians offices, clinics, outpatient surgical centers, extended care facilities and other patient care areas, which of require affordable monitoring
Standard configuration: ECG, HR, PR, SpO2, ST analysis, RESP*2 (RA-LL impedance and nasal cavity), NIBP (with venous punch), TEMP*2(surface and rectal type), Drug dose calculation.
Optional configuration: Wireless connection, Recorder and ETCO2, 2-IBP
1. Non-invasive blood pressure
* Measurement Type: adult, pediatric, neonate
Accuracy : + _ 0.4 kPa or +_ 2 %
*Lead section: , , / aVR, aVL, aVF/ V
*Gain(mm/mV) 1/4 , 1/2 , 1 , 2 , 4
*Frequency response: Diagnosis 0.05 - 100Hz
*Sweep speed (mm/sec): 12.5, 25, 50
*ST segment deviation analysis: -0.8~+0.8Mv
*Measurement range: 0~40kPa (0~300mmHg)
*Transducer sensitivity: 5MV/V/mmHg
*Unit display:kPa or mmHg selectable
* Measurement range: 0 %-10.0 % (ins CO2 and et CO2)
* Accuracy: + _ 2 mm Hg(< 5 % Measurement value)
10 % (> 5 % Measurement value)
* SpO2 measurement range: 0 - 100 %
* Pulse measurement range: 30- 254BPM
* Measurement range: 0-120 BPM
7. Environmental Specifications:
*Temperature Range: Operating: (0 - +50)centigrade
*Transport/Storage: (-40 - +70)centigrade
*Relative Humidity: Operating: 10-95%
*(noncondensing) Transport/Storage: 0 -95%
* Measurement range: 25.0 Centigrade~45.0 Centigrade
* Accuracy: + _ 0.1 Centigrade
10.Safety standard: IEC 60601-1
Quality System: ISO13485: 2003
UNIT HAS A GREAT, EASY TO READ LED DISPLAY ON A 10.4 INCH SCREEN- VERY PROFESSIONAL APPEARING - IT DISPLAYS ECG, ST SEGMENT, HEART RATE, PULSE RATE, OXYGENATION,BODY TEMPERATURE AND IT WILL DO NON-INVASIVE (CUFF) BLOOD PRESSURE
We will send your product at once within 1 or 2 business days, and provide the Tracking number to you , so you can check your product on website.
Most of LEAD MEDI TECH Group Equipment have 12 months warranty period. If there is something wrong with the products and only if the responsibility is ours, such as technology problems, we promise the change a new one for you or Refund .(You can choice)
