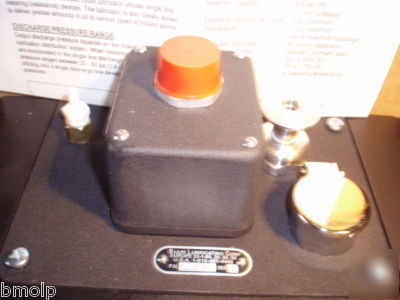

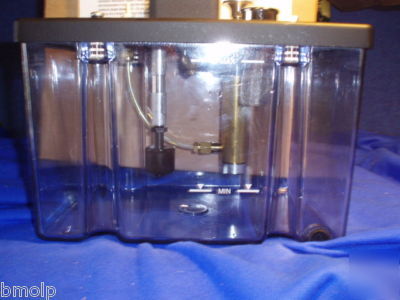

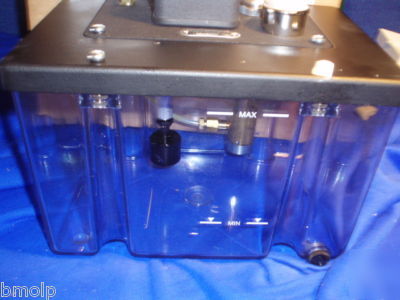

New bijur tm-1 lubricator 4 liter
BIJUR TM-1 Lubricators are used with single line resistance type centralized lubricating systems. These systems utilize cyclic delivery meter units to proportion oil discharged from the lubricator.
Lubricator is a motor-driven, spring discharge piston pump. The motor incorporates a gear reduction which determines the operating cycle time of the pump piston.
Discharge cycle time 12 second intervals
Lubricator Inlet Filter 40 micron particle separation
Factory Discharge Setting 1.0cc
Discharge Volume Per Cycle* 0.2cc to 1.0cc adjustable
Viscosity range 150 to 8,000 SSU (35-1750 cSt) at operating temperature
