Jet 3/4 ton puller with 5' lift

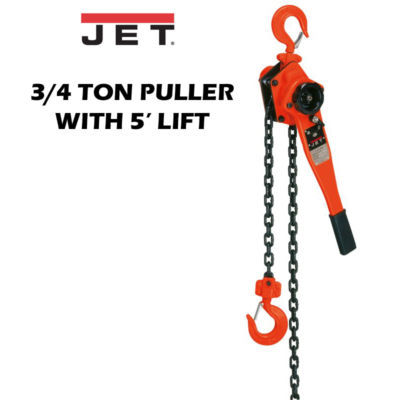

JET 3/4 Ton Puller with 5' Lift
Model Number: JLP-75-5 / Part Number: 187707
* Economical lever hoist designed for years of trouble-free operation
* 1/4-ton to 6-ton capacities
* 5', 10', 15' and 20' lifts standard, custom length lifts available
* All steel construction with a durable powder coat finish
* Completely enclosed Weston type automatic brake system holds load in any position
* Easy-to-use with single hand operation and control
* Simple design makes routine inspection and maintenance easy
* Freewheeling feature without load for quick load attachment
* Hardened grade 80 low wear chain
* Drop forged hooks with heavy-duty safety latches swivel 360 for easy rigging
* Proof tested with test certificate
* Complies with OSHA, ANSI/ASME B30.21 and HST-3 standards
* Capacity 0.75 metric ton
* Rated Capacity 1653 pound
* Standard Lift 5 '
* Headroom 12 7/16
* Number of Falls 1
* Load Chain Diameter 6 mm
* Lever Length 11 "
* Required pounds of pull to lift capacity 32
* Lift per Full Turn of handle "
* Height 6.5 inch
* Width 6.4 inch
* Length 14.5 inch
* Net Weight 16.35 pound
