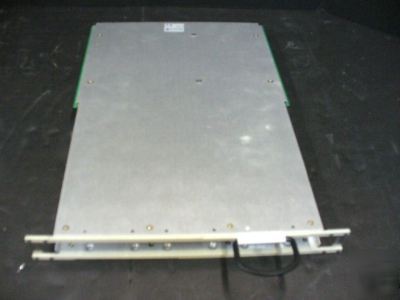

Agilent / hp E1403C a/b to c-size P1 active adapter
THE UNIT WAS WORKING WHEN REMOVED FROM SERVICE.
The Agilent E1403C 1- or 2-slot VXI carrier adapts A- or B-size VXI modules for use in al C-size VXI mainframes. P1, which is the only connector available, is a fully buffered extension. The E1403C provides slave-only capability and cannot be used in Slot 0 or with bus masters. The standard module is 1-slot wide; Option 010 is 2 slots wide, however, it only connects to the backplane on the left-most slot. Any number of adapters can be used in an Agilent VXI mainframe.
Many (but not all) VME cards can be adapted for use in C-size VXI mainframes using this module if they meet VXI mechanical and electrical restrictions. However, this is not a supported configuration.
Adapts A- or B-size VXI to C-size VXI
Fits 1-slot or 2-slot (optional) modules
Provides active extension of P1 only
Provides slave-only capability
