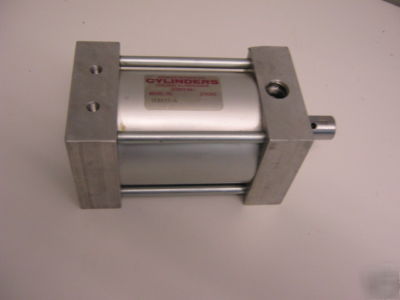

Advance automation b&j model 1608033-4 air cylinder
ADVANCE AUTOMATION SERIES B&J MODEL 1608033-4 AIR CYLINDER
Material And Design Specifications
6063-T832 grade aluminum alloy with hard coated I.D. This anodic coating provides extreme hardness, excellent wear, low coefficient of friction, and high corrosion resistance to ensure longer, trouble-free cycle life.
Precision machined from extruded 6061-T6 grade aluminum alloy.
Hard chrome plated steel ground and polished to a smooth finish.
High strength 1215 grade zinc clear chromate plated steel.
Continuous cast SAE 660 grade bronze bushing is piloted into the head to provide maximum load bearing support.
High grade aluminum alloy.
Block-Vee type, Buna N material is furnished as standard.
A low friction, dimensionally stable nylon wear band constitutes an excellent bearing surface.
Block-Vee type is self-adjusting to ensure proper seal.
Lip type urethane seal cleans piston rod and prevents foreign particles from entering cylinder.
One inch long cushion for deceleration. (Optional)
