Cnc linear actuator 36" slide cnc stepper motor drive

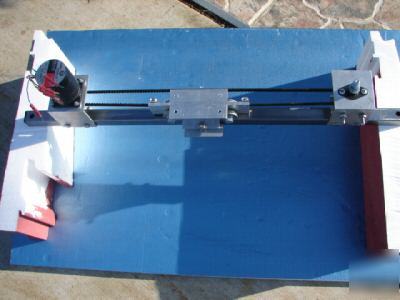

Linear Actuator with 36" of trolley travel, and a 2-1/4" by 4" mounting plate with 4 mounting holes 1/4-20 threads. This actuator mounts on each end with a 3/8" through hole drilled through the one inch square steel tubing main frame top to bottom, or with our mounting leggs and feet shown in the actuator section of the store. This actuator can be driven by any NEMA 23 stepper motor (not included) driving a 0.20XL timing belt with a 15 tooth timing pulley (included) mounted to the motor. Overall dimension outside to outside is 54"; top to bottom 7"; width 5". The actuator trolley rides on six flanged ball bearing wheels. The picture shown is actually a 24" model, and the 36" is actually one foot longer than the one shown.
