> 50,bnc male to 2 bnc female adapter connector plug,M2F

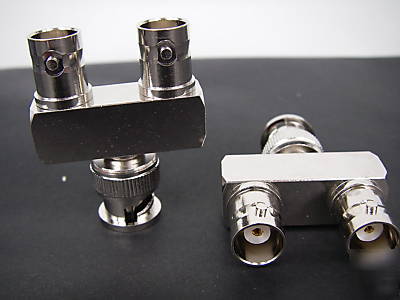

50,bnc male to 2 bnc female adapter connector plug,M2F
up for grads is for 50 pieces/sets BNC Male to 2 x BNC Female Adapter Connector Plug.
Temp.range................-65 +165 (PE Cable )centigrade
Vibration.................MIL-STD-202,Method 213
Impedanec.................50 .75
Frequency Range...........DC 4GHz
Working Voltage...........500V max
Withstand Voltage.........1500V rms
Center Contact............ 1.5m
Outer Contact............. 1m
Insulation resistance .... 5000 m
VSWR Straight............. 1.22
Right angle?.............. 1.30
Durability(mating)........ 500 (cycles)
shell ..............brass ................nickelplated
contact pin ........brass.................gold or silverplated
socket............. beryllium.............gold or silverplated
elastic contact.... beryllium ............gold or silverplated
crimping suite..... copper alloy......... nickelplated
0-ring sealing .....6146 silastic
