> 10UF @ 500V axial leaded electrolytic capacitors:qty=5

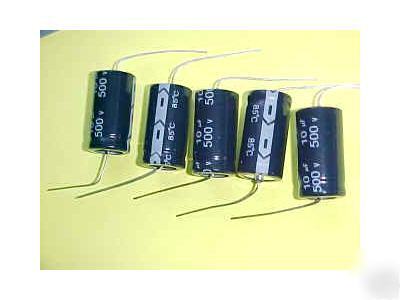

10UF @ 500V axial leaded electrolytic capacitors:qty=5
* General purpose elecytolytics. Ideal for use as "filter" capacitors and "audio cathode by-pass" capacitors in tube audio/radios/amps/test equipment.
* Long axial tinned copper-ply leads for easy "under chassis" installation.
* Construction: Aluminum (compact size / dry type) Polarized.
* Dissipation Factor: 0.30 MAX measured at 25C/120Hz
* Leakage Current: less or equal to 150 (uA MAX)
* Ripple Current: 72 (mA MAX)
* Size: 16mm by 30mm (5/8" by 1 1/4")
* Capacitance tolerance: +/- 20% at 120Hz, 25C.
